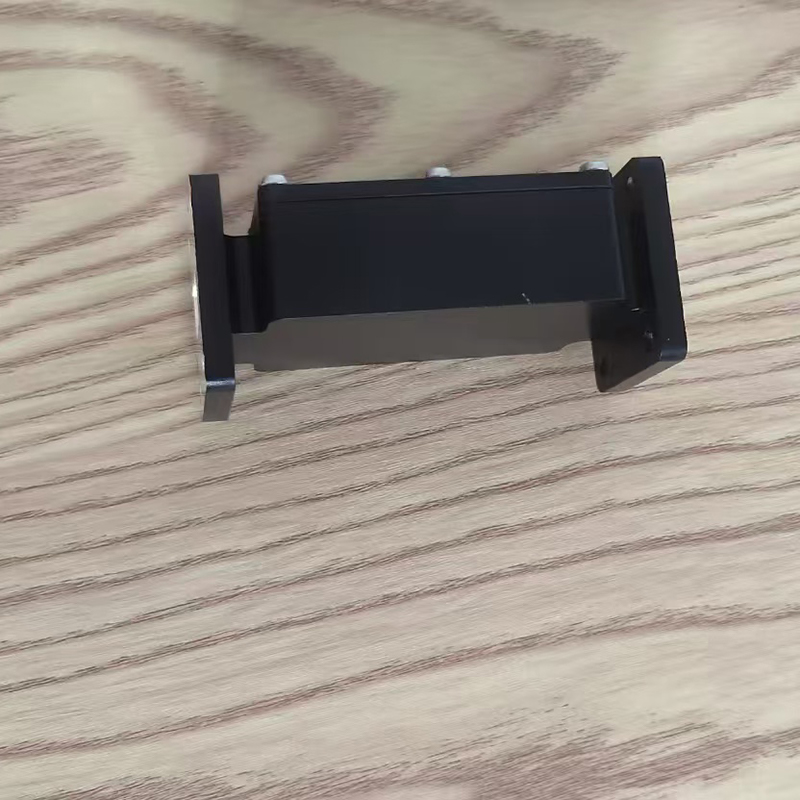

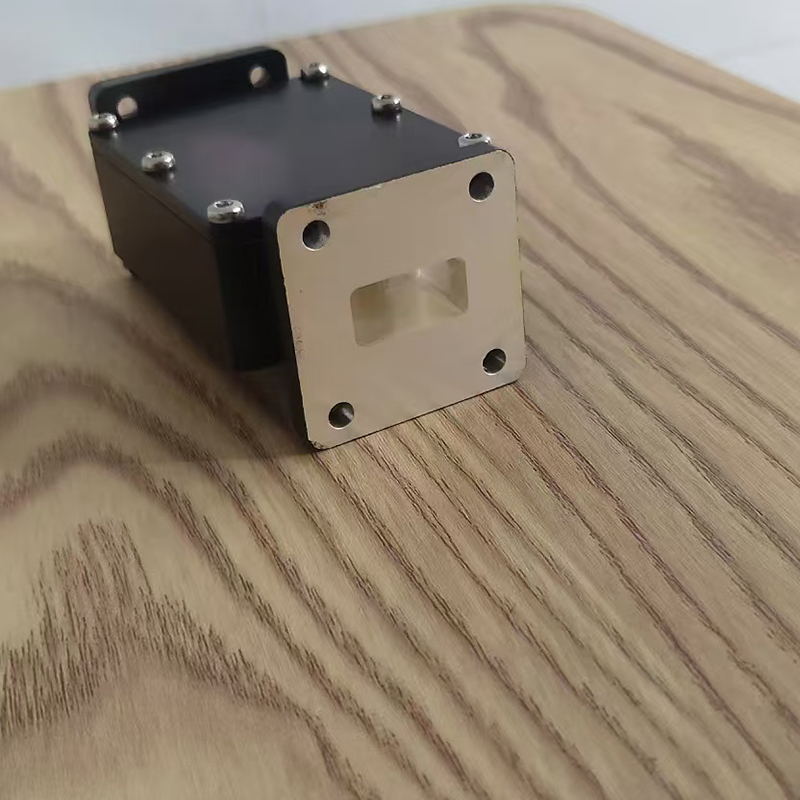

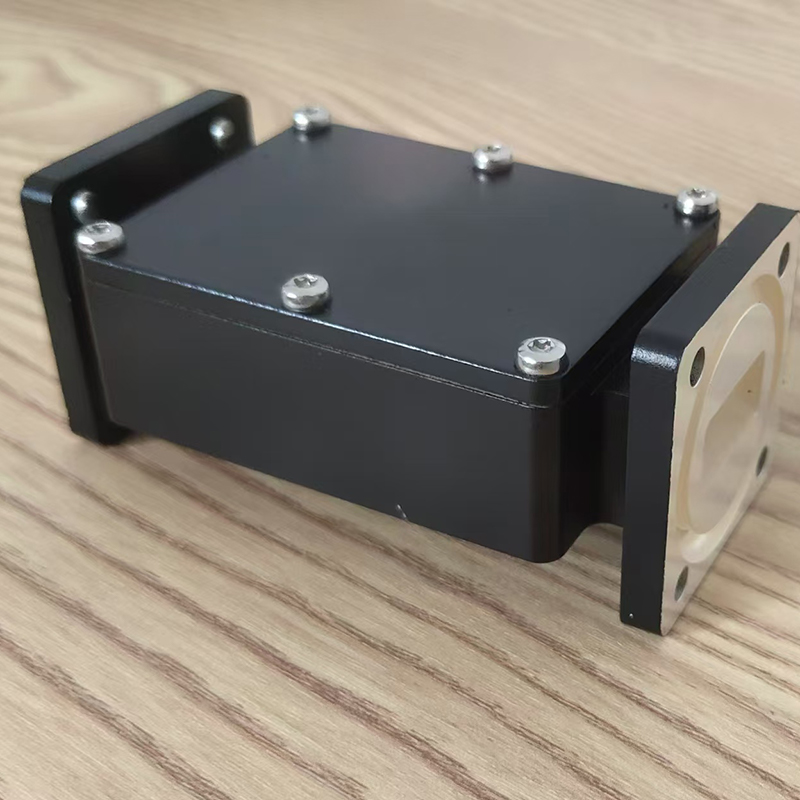

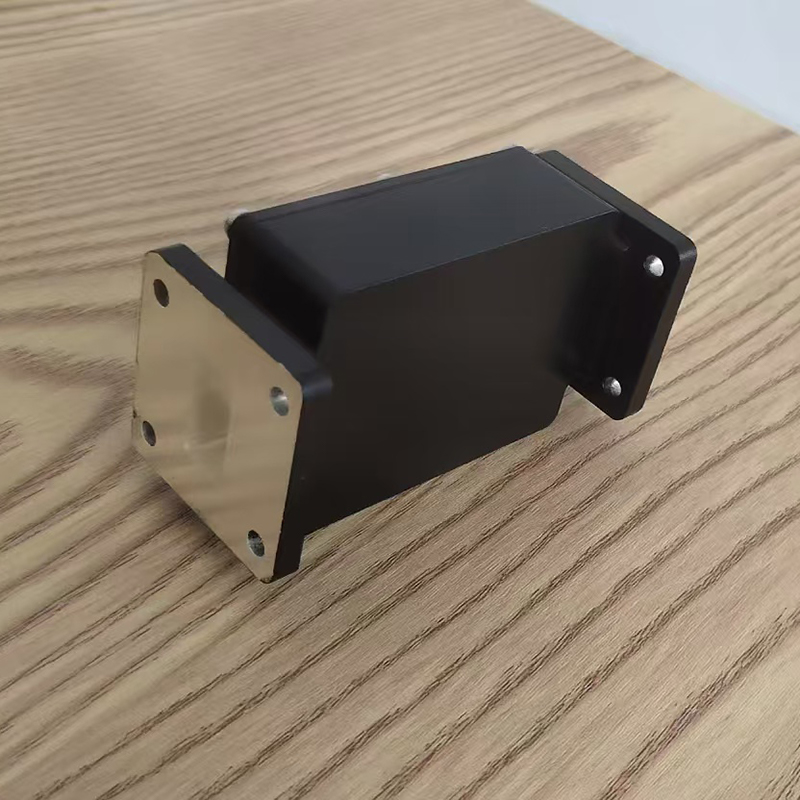

OEM Norsat 5G filter Quality 12750-13250MHz anti-interference ku band 5G filter FT6BA1A10010

Discover unmatched suppression of 5G signal interference with the FT6BA1A10010, a top-tier 5G filter engineered for exceptional isolation and smooth satellite C-band communication.



♦ Pass band: 12750-13250
♦ Suitable for indoor and outdoor applications
♦ Plane mounting
♦ Connector Type,Flange

    Electrical Specifications

    Electrical Specifications

    Type No.

    FT6BA1A10010

    Frequency Band (MHz)

    12750-13250

    Insertion Loss (dB)(Full temperature,Outcluding connectors)

    ≤0.25

    Rejection (dB)

    ≥55@10700-11450MHz

    Return Loss (dB)/VSWR

    ≤-18/1.3:1

    Input Power (W)

    <100

    Grorp Delay(ns)

    /

    Impedance (Ω)

    50

    Mechanical Specifications

    Environmental & Compliance

    Dimensions,HxWxD (mm)

    130x50x38

    Operational Temperature (°C)

    -40 to +65

    Weight (kg)

    0.5

    Operational Humidity (%)

    ≤95

    Packing Size(mm)

    180x100x90

    Environment

    IP40

    Connector Type

    WR75 Grooved and WR75 Flat

    Application

    Indoor

    Color

    Metal

    RoHS

    Compliant

    Mounting

    Plane mounting





    Outline Drawing

    Electrical Specifications

    Type No.

    FT6B37420260

    Frequency Band (MHz)

    3700-4200

    Insertion Loss (dB)(Full temperature,Outcluding connectors)

    0.4,typ.,1.0max

    Rejection (dB)

    ≥70@3000-3600MHz,≥50@3600-3680MHz,

    ≥15@4250-4400MHz, ≥70@4400-5000MHz

    Return Loss (dB)/VSWR

    ≤-18/1.3:1

    Input Power (W)

    <100

    Mechanical Specifications

    Environmental & Compliance

    Dimensions,HxWxD (mm)

    170x98.5x69.9

    Operational Temperature (°C)

    -40 to +65

    Weight (kg)

    0.8

    Operational Humidity (%)

    ≤95

    Packing Size(mm)

    235x170x120

    Environment

    IP67

    Connector Type

    CPR-229G(input),CPR-229F(output)

    Application

    Indoor and Outdoor

    Color

    Apple White

    RoHS

    Compliant

    Mounting

    Plane mounting

    Finish

    UV resistant Epoxy

    Outline Drawing

    • FT6BA1A10010

    advantage

    Signal Precision

    Secures perfect signal reception for broadcasting and communication, eliminating interference from 5G networks.

    Weather-Proof Design

    Constructed to operate seamlessly under extreme weather conditions, ensuring dependable meteorological data transmission.

    Enhanced Communication Security

    Strengthens security measures for defense communications, protecting them from potential signal disruptions.

    Uninterrupted Media Broadcasting

    Prevents interference in news broadcasts, guaranteeing reliable and clear media transmissions.

    Military Communication Protection

    Provides top-tier signal isolation for military use, ensuring the confidentiality and dependability of sensitive communications.

    Safe Aviation Communication

    Critical for maintaining clear, uninterrupted communications in air traffic control, boosting overall flight safety.

    Continuous Hospitality Services

    Enhances the guest experience by ensuring satellite TV and communication services are free from interruptions.

    PERFORMANCE CHARACTERISTICS

    The FT6BA1A10010 comes equipped with numerous features that make it a reliable and efficient solution for 5G signal interference mitigation:
