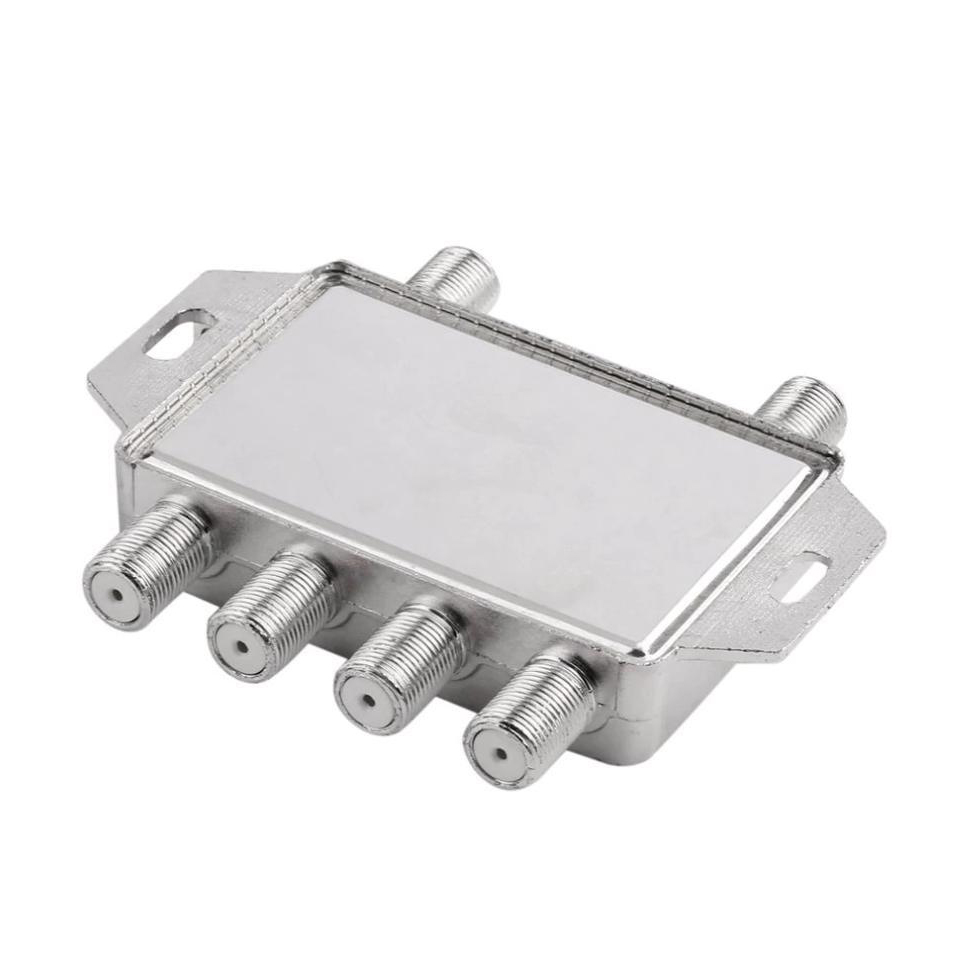

2X4 Satellite Multiswitch
-
-
WeChat:
+86 18666876980
Technical Specifications

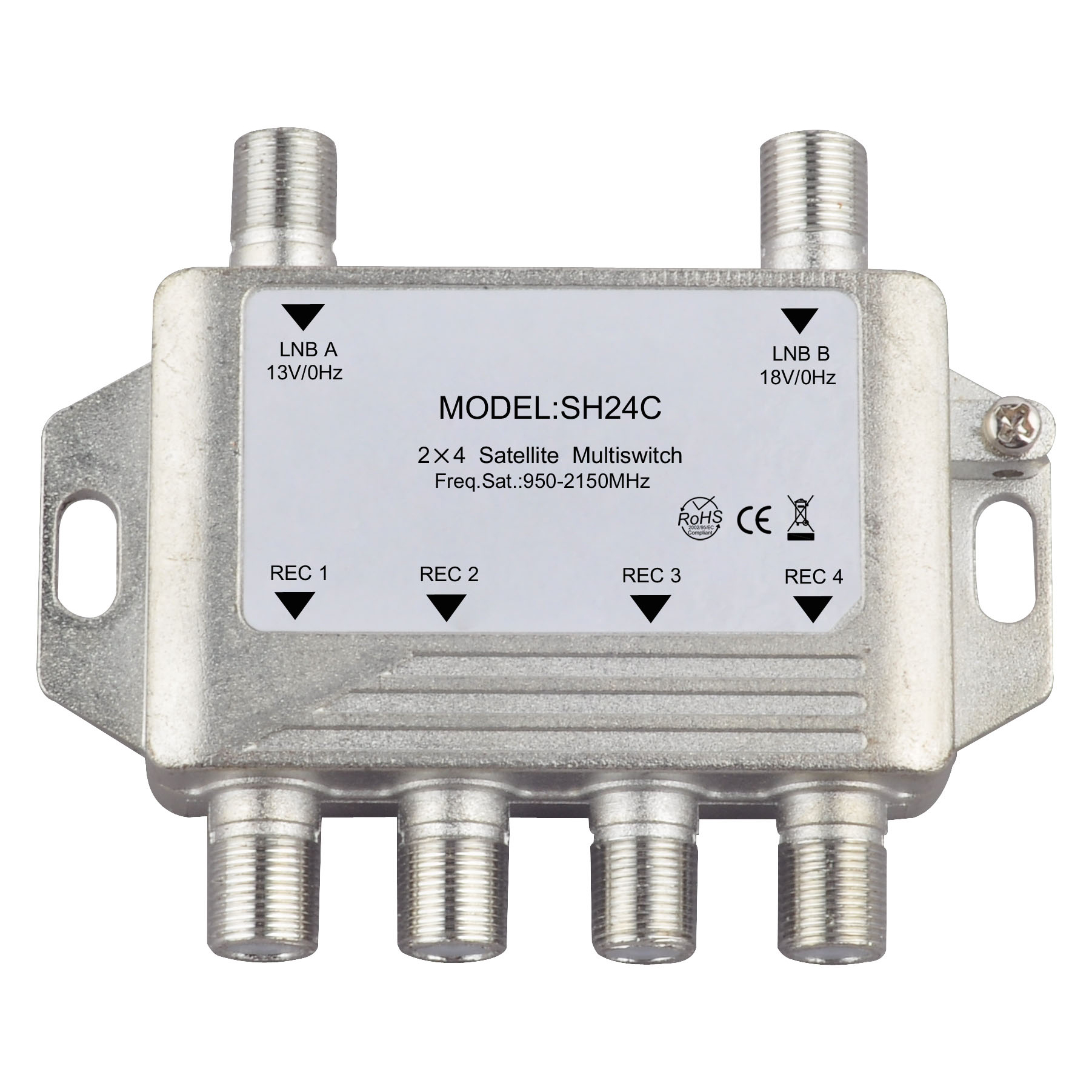

MODEL:SH24C
DESCRIPTION:2×4 Satellite Multiswitch
Featrues:
2 satellite IF inputs for 4 satellite receiver
2 satellite IF inputs selected by 13V/18V signal
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Zinc die cast housing, nickel plated
Design good for indoor usage
Specifications
|
Specifications Item |
Typical |
QC Limit |
Remark |
|
|
Frequency Range |
SAT:950~2150MHz |
|
||
|
Inputs |
2 SAT |
F connectors |
||
|
Outputs |
4 Receiver |
F connectors |
||
|
Insertion Loss |
SAT |
2dB |
4dB |
|
|
Return Loss |
SAT |
12dB |
10dB |
|
|
Stop band attenuation |
SAT |
25dB |
20dB |
|
|
Isolation |
H/V |
30dB |
25dB |
|
|
REC-REC |
30dB |
25dB |
|
|
|
Switching Voltage |
V:10~15V H:16~20V |
|
||
|
Dimensions (L,W,H) |
88×72×16 |
mm |
||
Why choose us
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years
