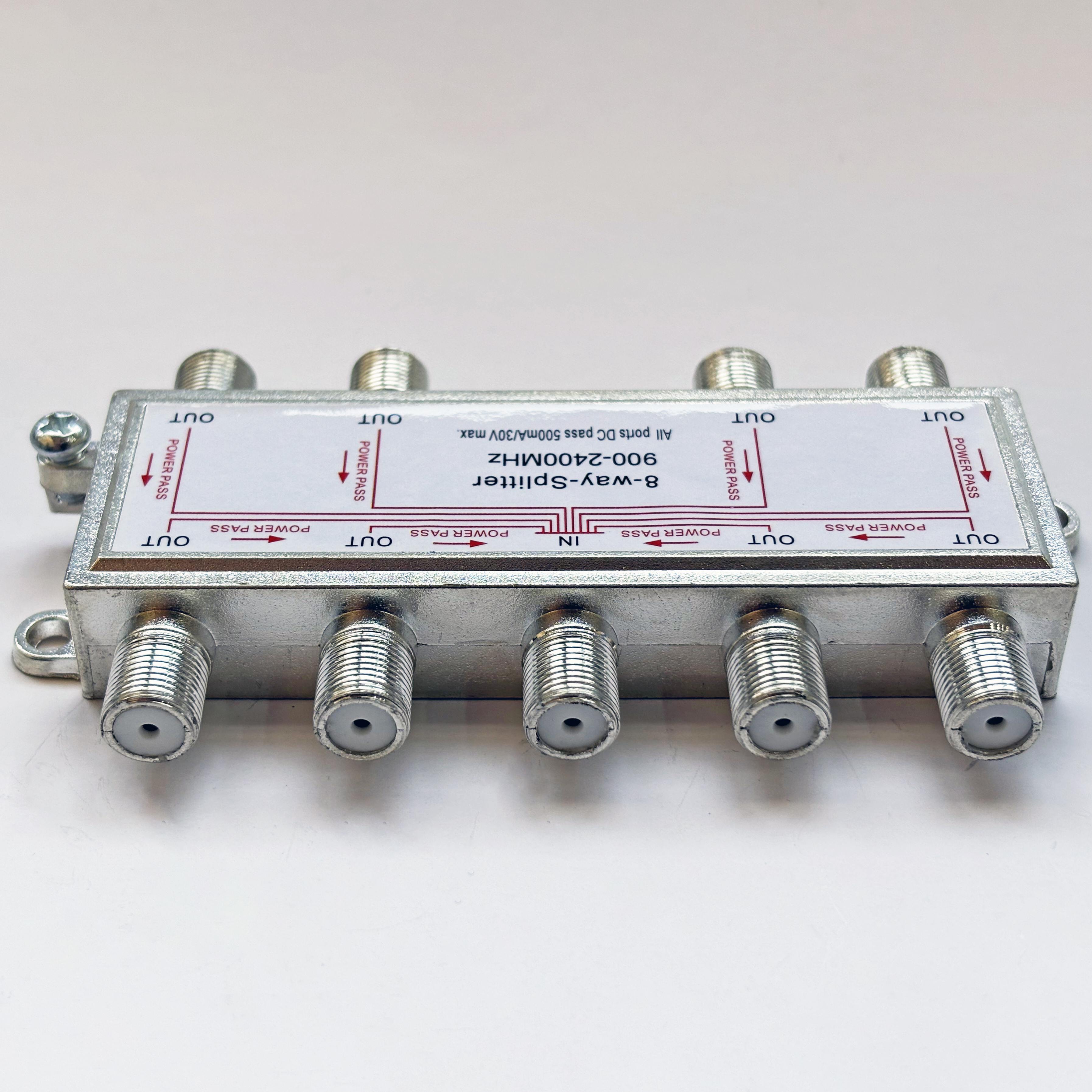

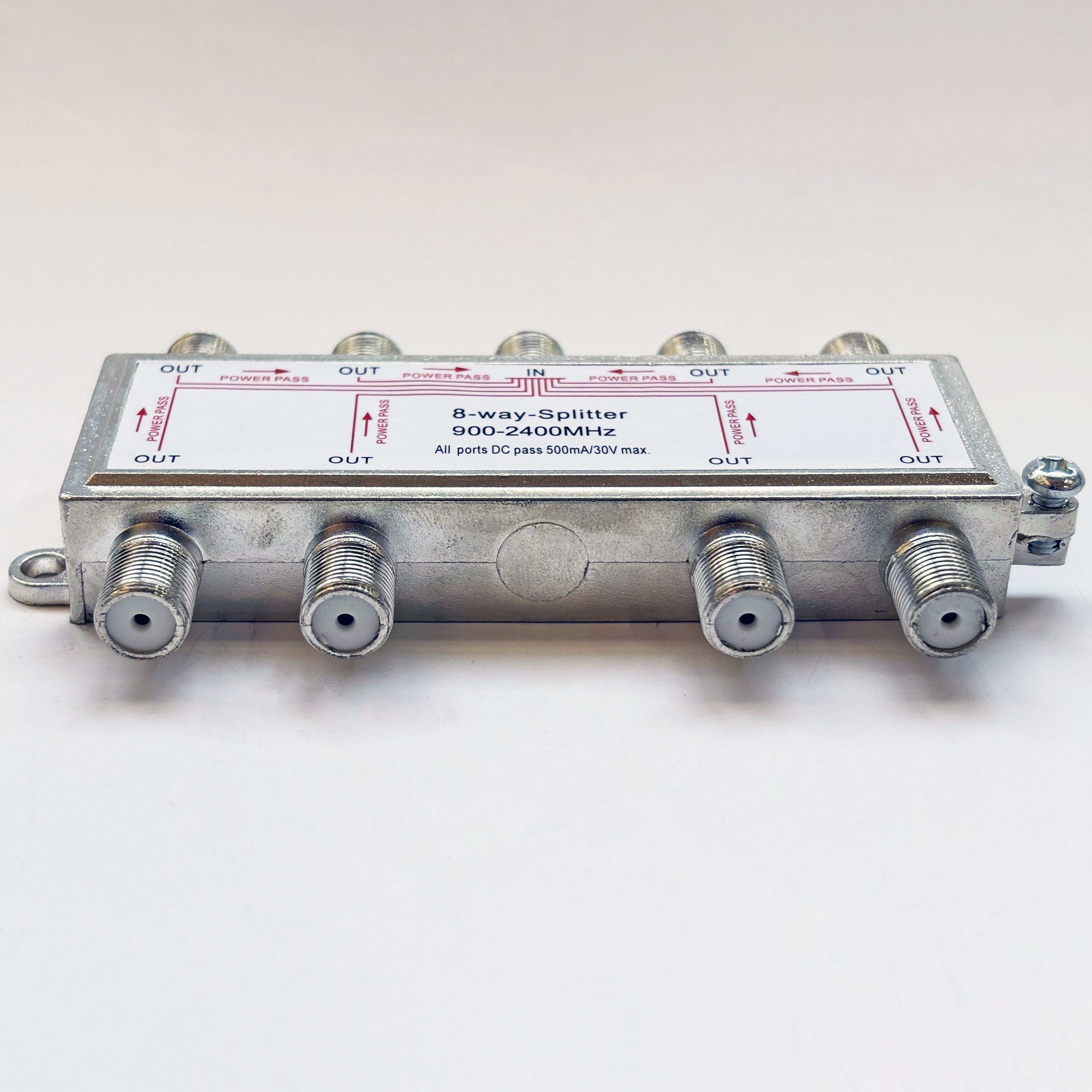

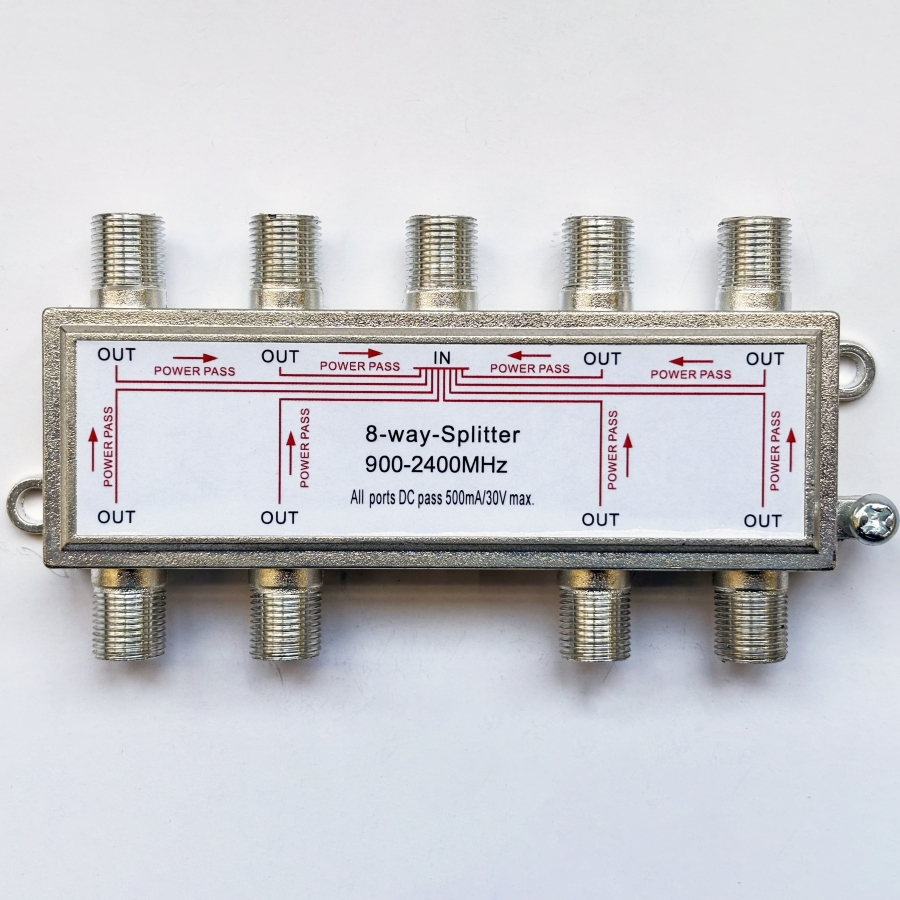

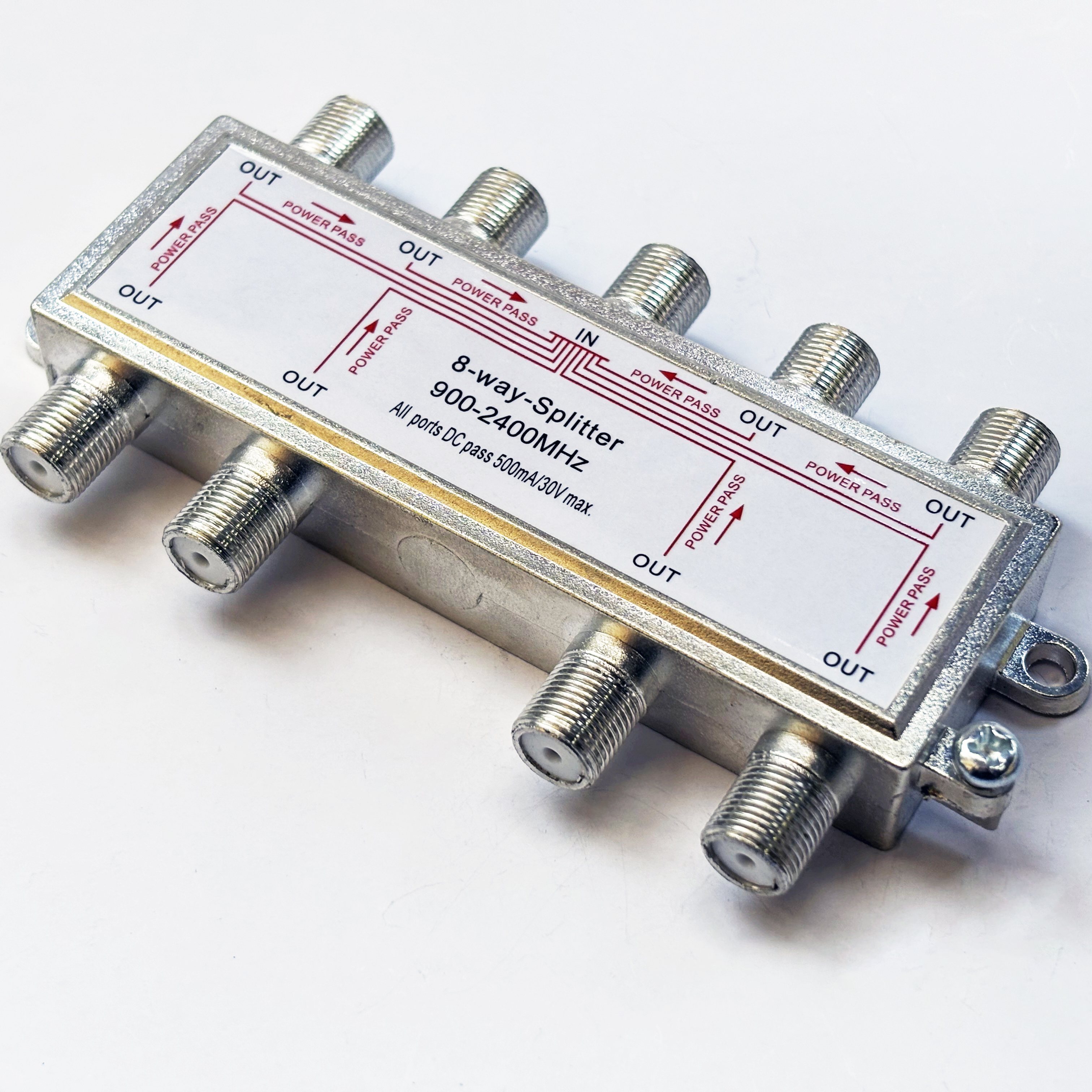

900-2400MHz 8 way Splitter
-
-
WeChat:
+86 18666876980
Technical Specifications
|
Specifications： |
|||||||
|
Item |
Frequency |
2-way-splitter |
4-way-splitter |
8-way-splitter |
|||
|
|
|
Typical |
Q C |
Typical |
Q C |
Typical |
Q C |
|
Insertion Loss IN-OUT (dB) |
950-1750MHz |
5.0 |
5.3 |
9.7 |
10.2 |
15.5 |
16.0 |
|
|
1751-2150MHz |
5.3 |
5.5 |
10.0 |
10.5 |
16.2 |
16.5 |
|
|
2151-2400MHz |
5.8 |
6.0 |
10.5 |
11.0 |
16.8 |
17.0 |
|
Mutual Isolation OUT-OUT (dB) |
950-2150MHz |
25 |
24 |
23 |
22 |
23 |
22 |
|
|
2051-2400MHz |
23 |
22 |
23 |
23 |
24 |
23 |
|
Return Loss IN/OUT (dB) |
950-2150MHz |
13 |
12 |
13 |
12 |
14 |
13 |
|
|
2051-2400MHz |
12 |
11 |
14 |
14 |
13 |
12 |
|
DC pass through over diodes from all output:1A/30V Max. |
|||||||
|
Shielding Efficiency VHF/UHF:＞110dB |
|||||||
|
Impedance:75Ω |
|||||||
Why choose us
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years
Application example
