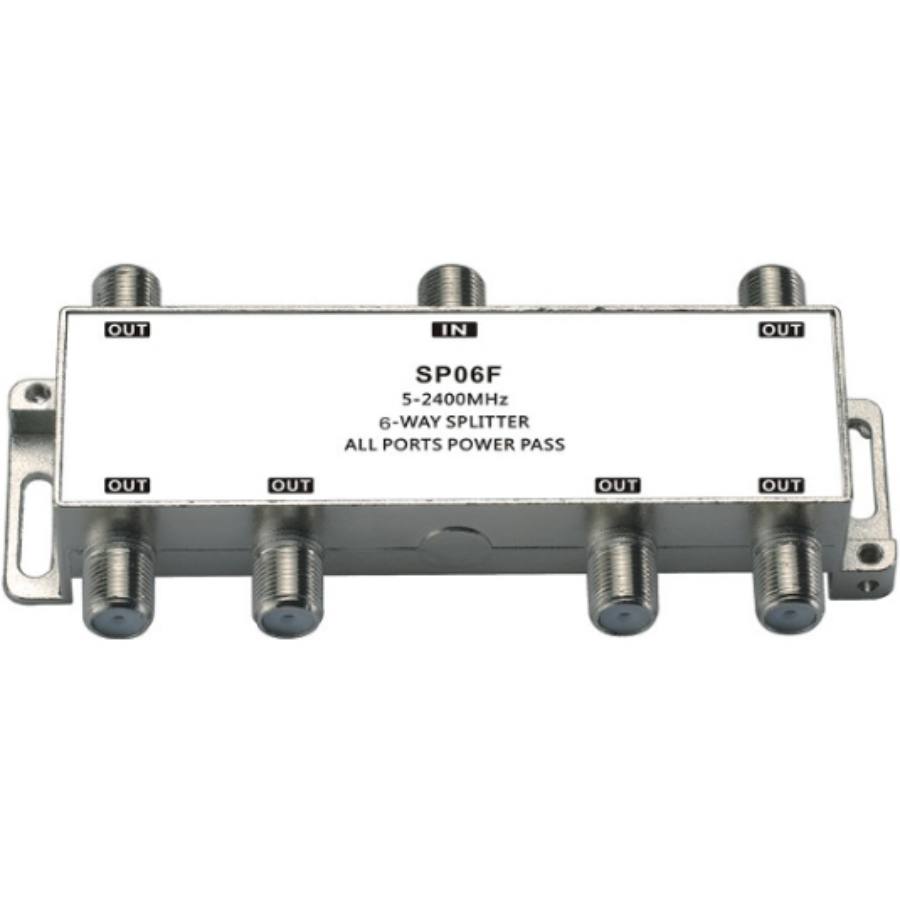

5-2400MHz 6 way splitter SV600F
-
-
WeChat:
+86 18666876980
Technical Specifications
| Zinc die-cast housing | |||
| Model SP06F | |||
| Specifications: | |||
| Frequency Range (MHz) | Insertion Loss(dB) | Mutual Isolation(dB) | Return Loss(dB) |
| 5-47 | ≤12.5 | ≥18dB | ≥10 |
| 47-770 | ≤13 | ≥20dB | ≥10 |
| 770-1489 | ≤13.5 | ≥20dB | ≥12 |
| 1489-2150 | ≤14.5 | ≥20dB | ≥12 |
| 2150-2500 | ≤16 | ≥20dB | ≥10 |
| Connectors | F Female | ||
| Impedance | 75Ω | ||
| Operating Temperature Range (ºC) | -20～+60 | ||
| product size(mm) | |||
| Weight (kg) | 0.085 | ||
Why choose us
010203040506
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years
