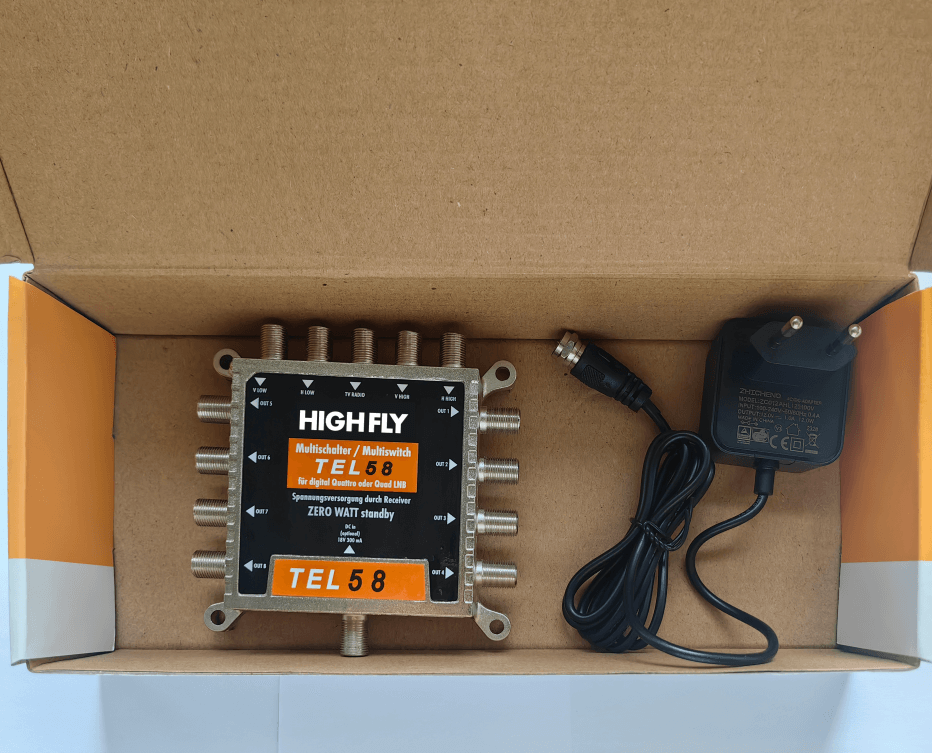

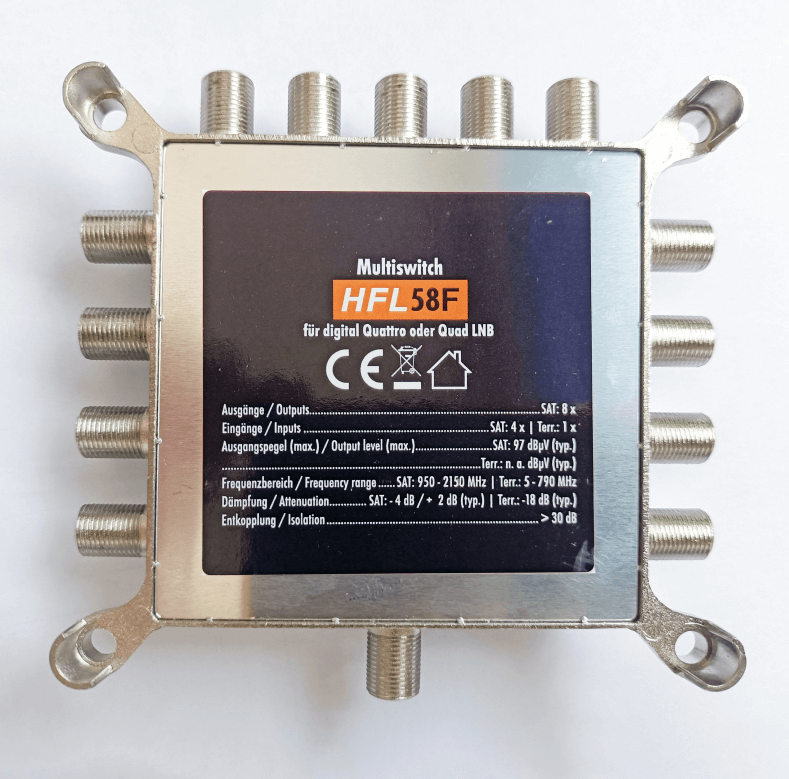

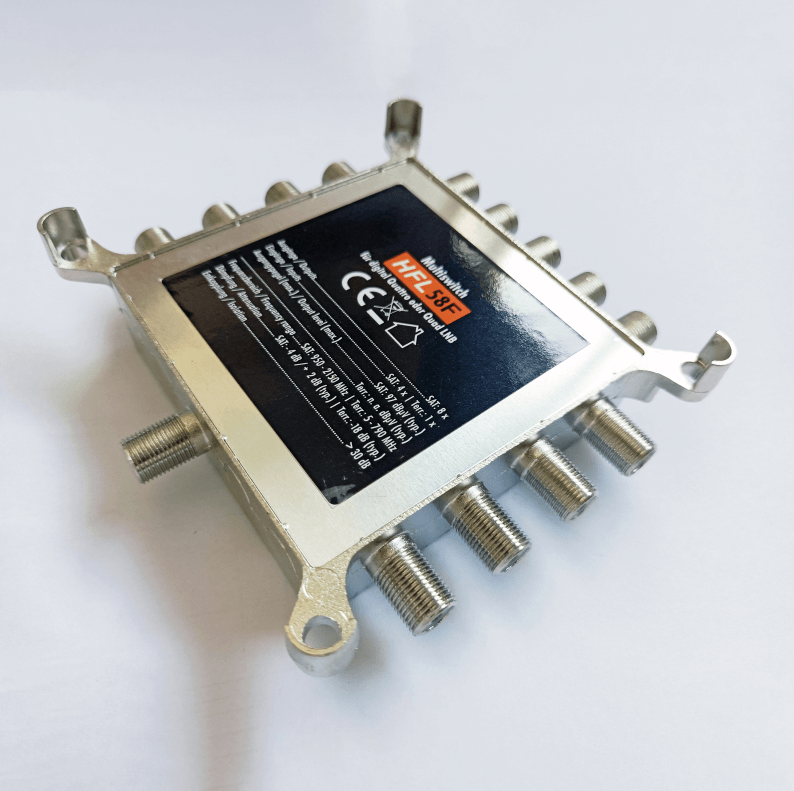

5X8 satellite multiswitch
-
-
WeChat:
+86 18666876980
Technical Specifications
MODEL:MS58
DESCRIPTION:5×8 Satellite Multiswitch
Featrues:
4 satellite IF and 1 terrestrial TV inputs for 8 satellite receiver
4 satellite IF inputs selected by 13V、18V、22KHz signal
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Sheet metal housing with plastic holder
Design good for indoor usage
Specifications
|
Specification Item |
Typical | QC Limit | Remark | |
| Frequency Range | Terr.:47~800MHz SAT:950~2150MHz | |||
| Inputs | 4 SAT+1 Terr. | F connectors | ||
| Outputs | 8 Receiver | F connectors | ||
| TAP Loss | Terr. | 3 | 5 | |
| SAT | 0 | 1 | ||
| Return Loss | Terr. | 10 | 8 | |
| SAT | 10 | 8 | ||
| Stop band attenuation | Terr. | 20 | 15 | |
| SAT | 35 | 30 | ||
| Isolation | H/V | 45 | 40 | |
| REC-REC | 35 | 30 | ||
| Power Adapter | IN:100~240V OUT: DC12V1.5A | |||
| Dimensions (L,W,H) | 163×120×43 | mm | ||
Why choose us
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years
Application example
