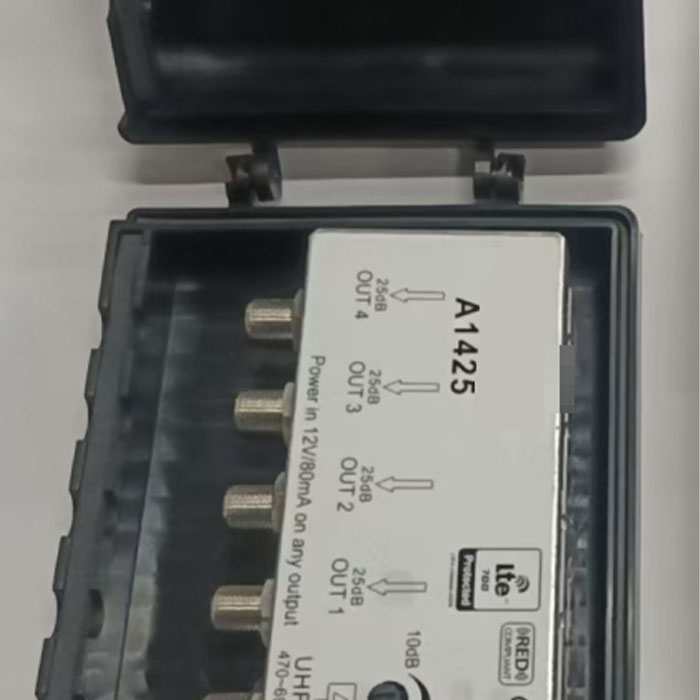

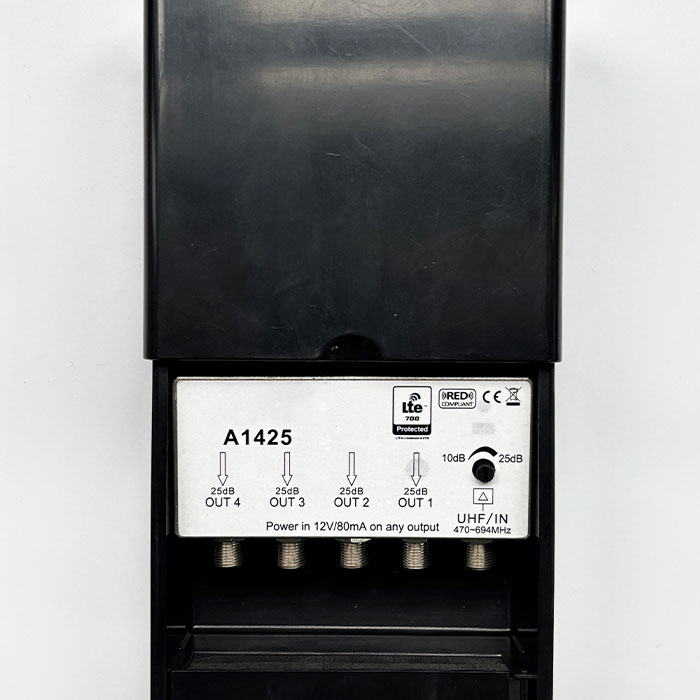

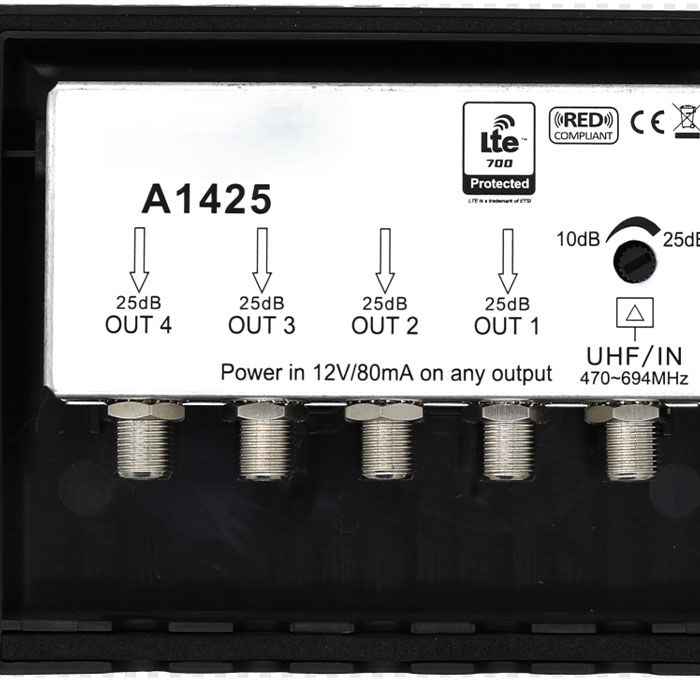

A1425 1 in 4 out 25dB UHF 5G LTE amplifier
-
-
WeChat:
+86 18666876980
Technical Specifications
|
Model |
A1425 |
|
Inputs (F Connectors) |
1 |
|
Outputs (F Connectors) |
4 |
|
Frequency UHF (MHz) |
470~686 |
|
Gain (dB) |
25±2 |
|
Return Loss (dB) |
≥10 |
|
Gain Adj (dB) |
10±2 |
|
Output Level(IM3-60dB) (dBuV) |
85 |
|
Noise Figure (dB) |
≤4 |
|
Impedance (Ω) |
75 |
|
Power Supply Port (12VDC) |
Output Port |
|
Dimension (mm) |
138×138×43 |
|
Weight (kg) |
0.615 |
Why choose us
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years
Application example
