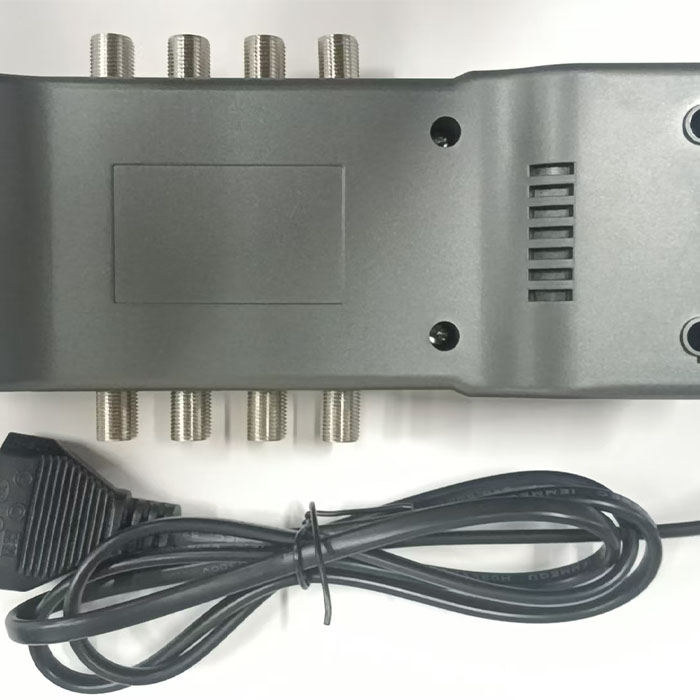

A2810 2 in 8 out VHF+UHF 5G LTE amplifier
-
-
WeChat:
+86 18666876980
Technical Specifications
|
Model |
A2810 |
|
Number of input |
2 |
|
Number of output |
8 |
|
Frequency Range(MHz) |
VHF:85-230 |
|
|
UHF:470-686 |
|
Output Frequency(MHz) |
85-686 |
|
IR Return pass(MHz) |
5-30 |
|
Forward Gain(dB) |
10±2 |
|
Return Path Gain(dB) |
0～4 |
|
LTE Rejection(dB)(686MHz to 717MHz) |
25 |
|
LTE Rejection(dBc)(686MHz @717-862MHz) |
22 |
|
Noise Figure(dB)(85MHz-766MHz) |
≤5.5 |
|
Max output level(dBuv) |
≥93 |
|
Max current on each output(mA) |
15 |
|
Return Loss(dB) |
6 |
|
Isolation(dB) |
10 |
|
Main Supply |
230Vac, ±10％ 50HZ |
Why choose us
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years
