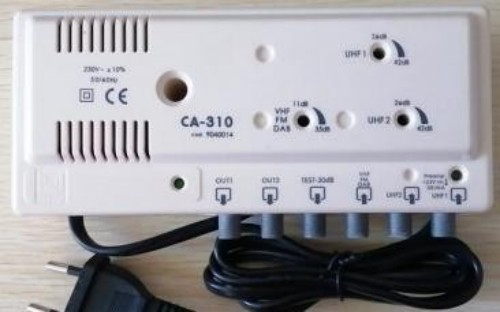

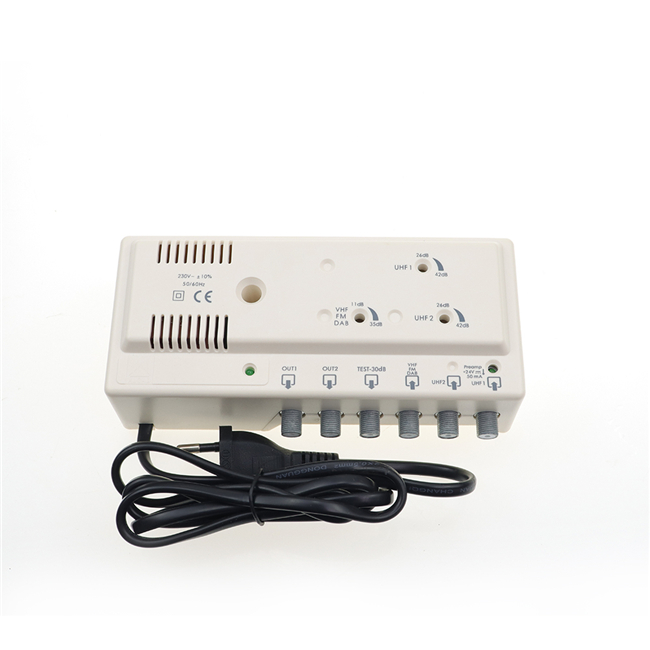

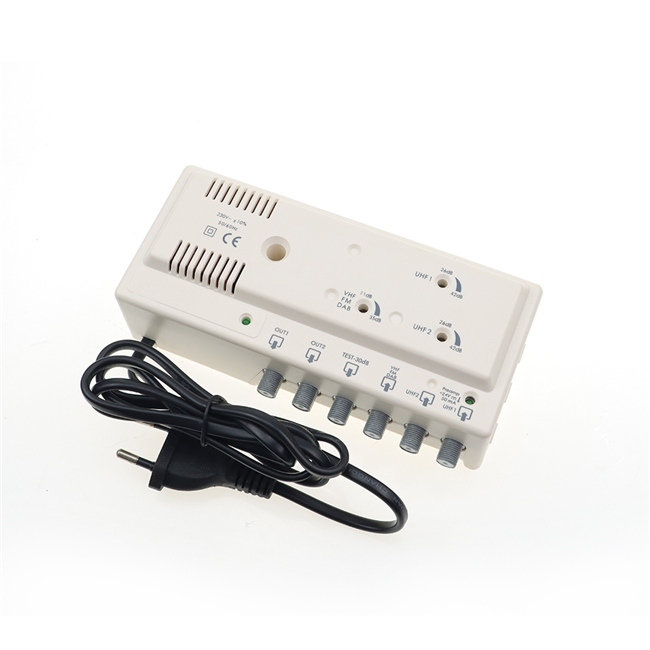

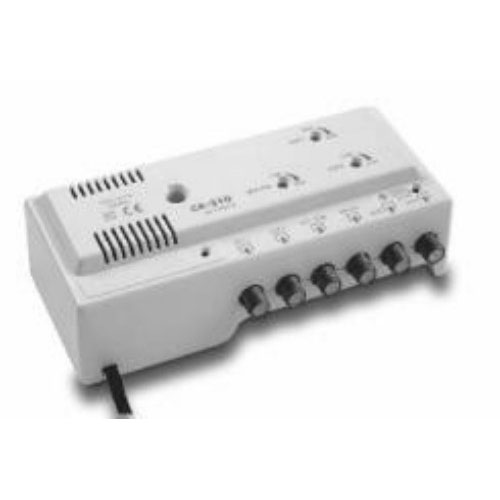

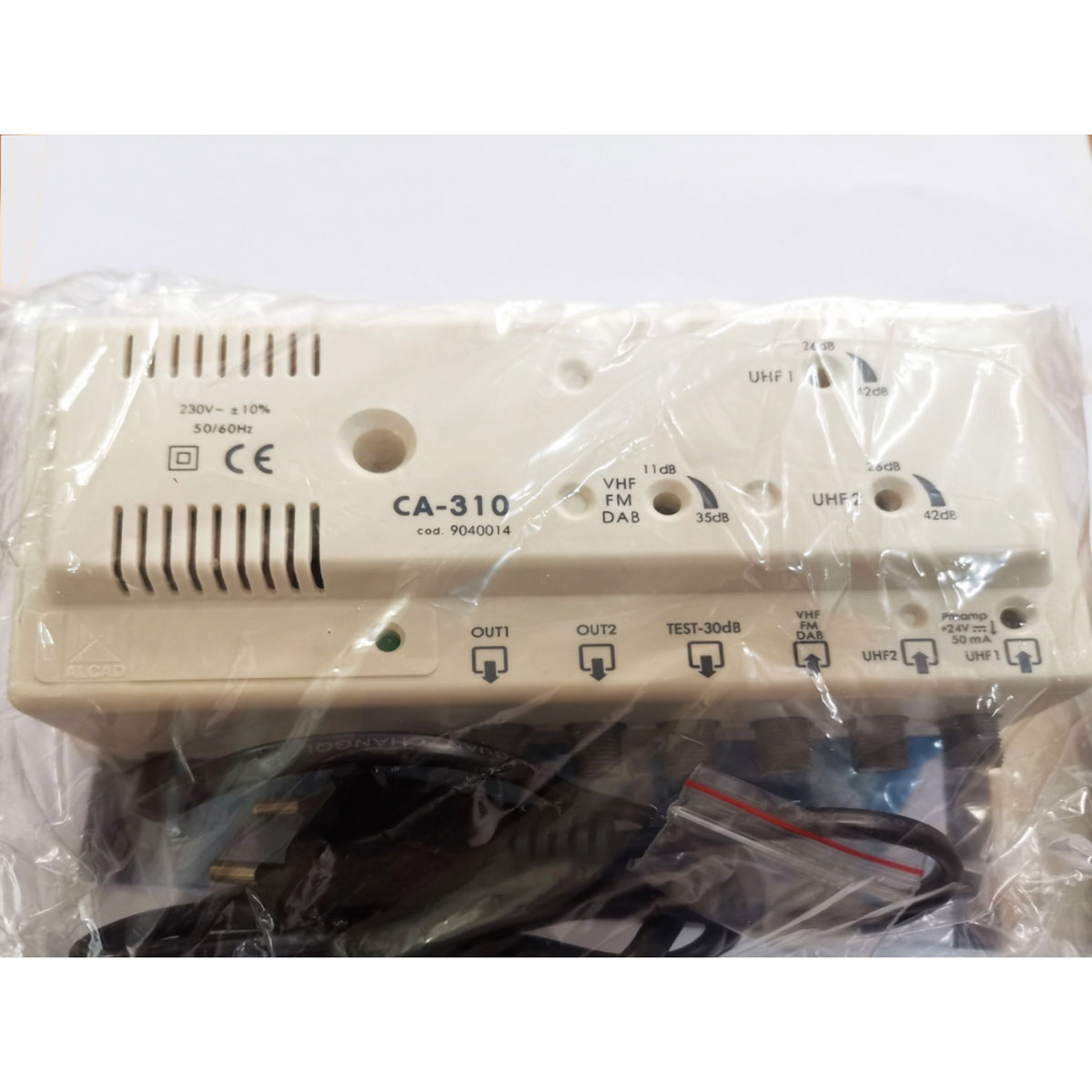

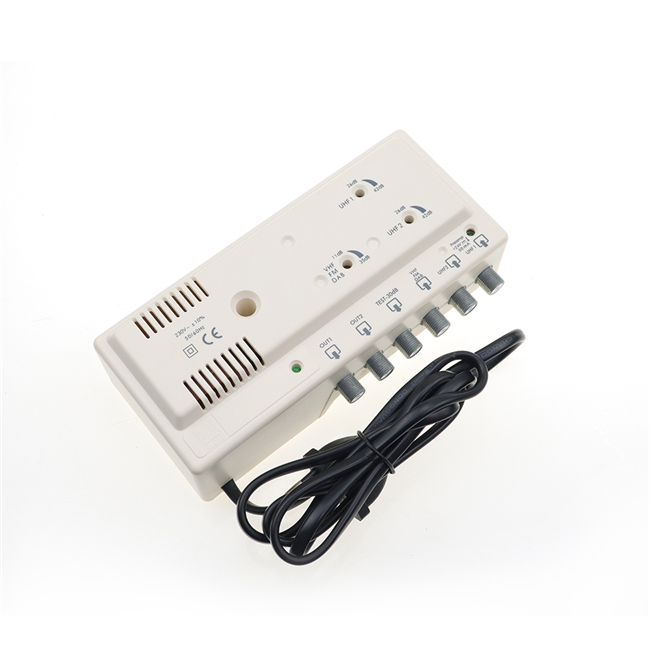

CA310 STA-310 2 WAY 2X4 Amplifier
2-WAY Amplifier
Frequency Range: 47-860MHz
Power :230VAC±10% 50/60Hz
All ports F-(f) connector，75Ohm
-
-
WeChat:
+86 18666876980
Technical Specifications
|
Personnel |
Signature |
date |
Test Index |
No |
|
|
Preparation |
|
|
product model |
STA-310 |
|
|
Auditing |
|
|
Product name |
Amplifier |
|
|
Approval |
|
|
Edition |
A0 |
|
Model |
STA-310 |
|||||||
|
Input/Output |
3/2 |
|||||||
|
Frequency Range |
Band |
BI |
FM |
BIII/DAB |
UHF1 |
UHF2 |
||
|
MHz |
40-70 |
88-108 |
160-260 |
470--860 |
470-860 |
|||
|
Gain |
dB |
35±2 |
25±2 |
35±2 |
40±2 |
40±2 |
||
|
Gain adjustment |
dB |
20 |
16 |
|||||
|
Output test point |
dB |
30 |
||||||
|
Output Level |
dBuV |
2x110 DIN 45004B 2x107 IMD3-66dB 2x100 IMD2-60dB |
||||||
|
Noise Figure |
dB |
5 |
||||||
|
Return Loss |
dB |
≥10 |
||||||
|
Output voltage |
VDC |
- |
24V 50mA |
- |
||||
|
Power |
VAC |
230VAC±10% 50/60Hz |
||||||
|
VA |
7 |
|||||||
|
Operating Temperature |
℃ |
-10~+65 |
||||||
Why choose us
2-WAY Amplifier
Frequency Range: 47-860MHz
Power :230VAC±10% 50/60Hz
All ports F-(f) connector，75Ohm

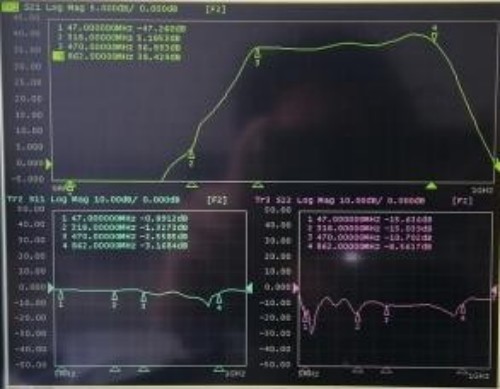

Test index chart：
UHF 1
UHF2
VHF

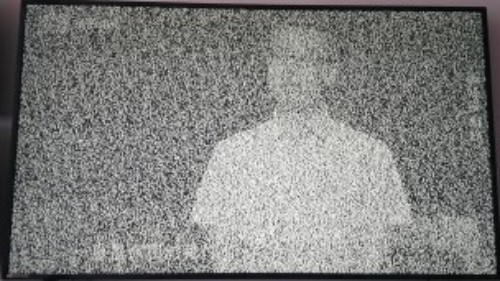

Users using test results
一、Test environment description:
1. Signal source: satellite TV signal
2. RF signal: satellite signal is generated by modulator
3. Three eight-splitter products

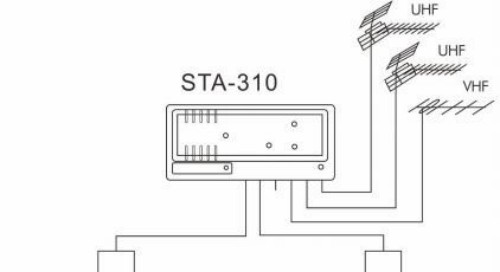

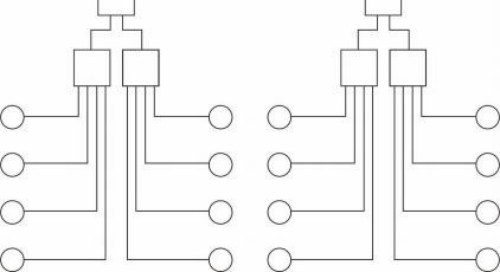

二、Use connection diagram
Figure 1
Figure 2

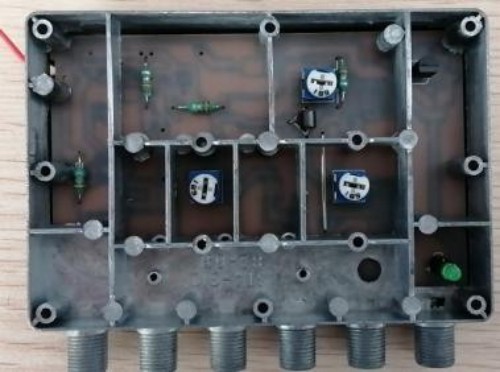

PCB top

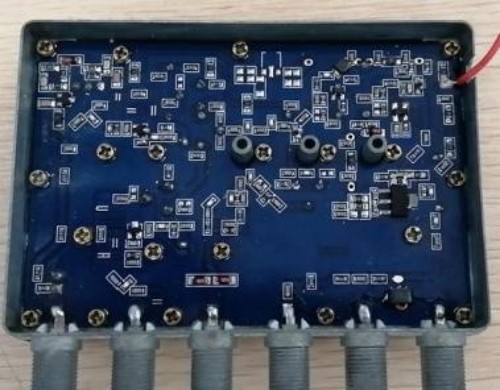

PCB bottom
