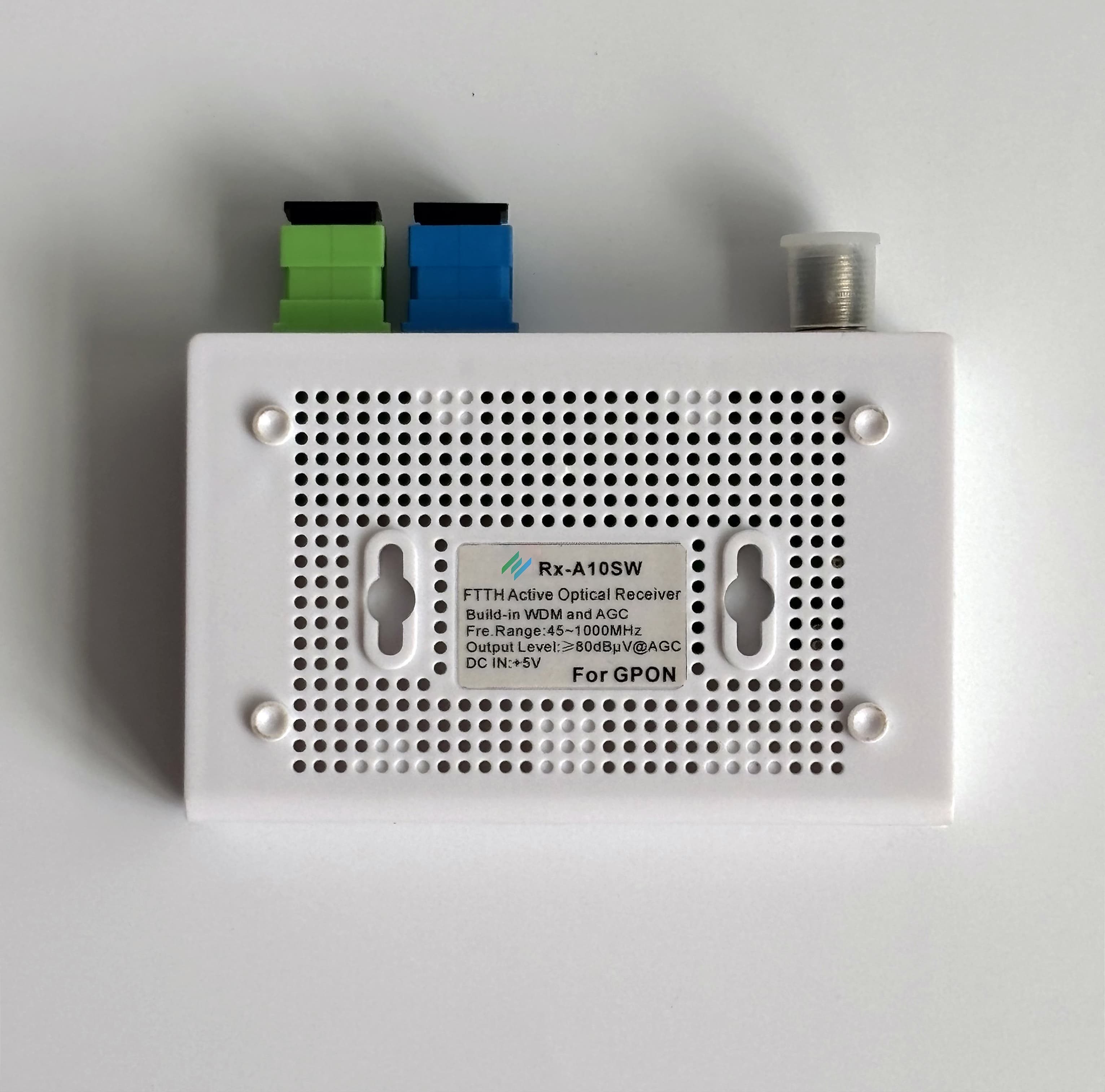

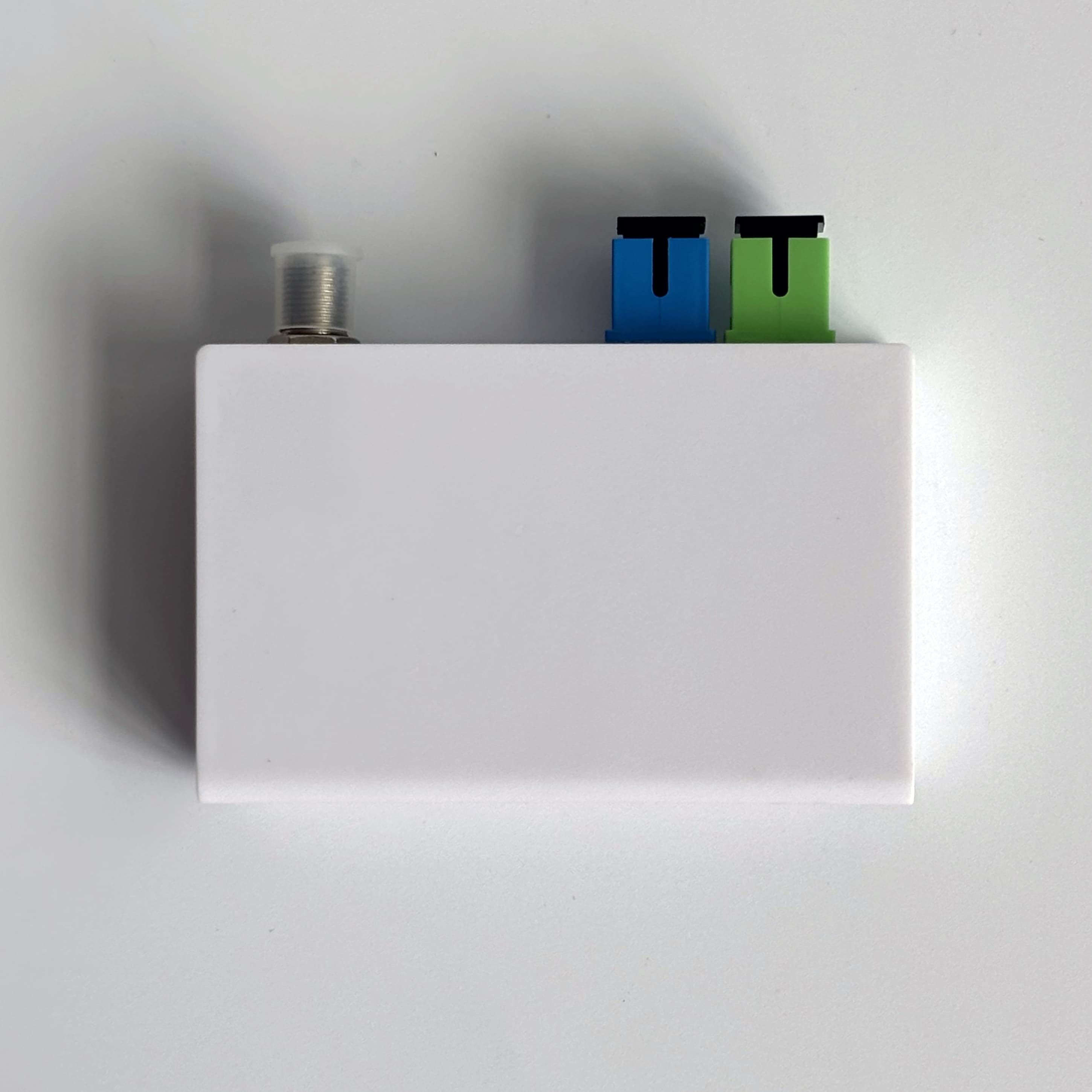

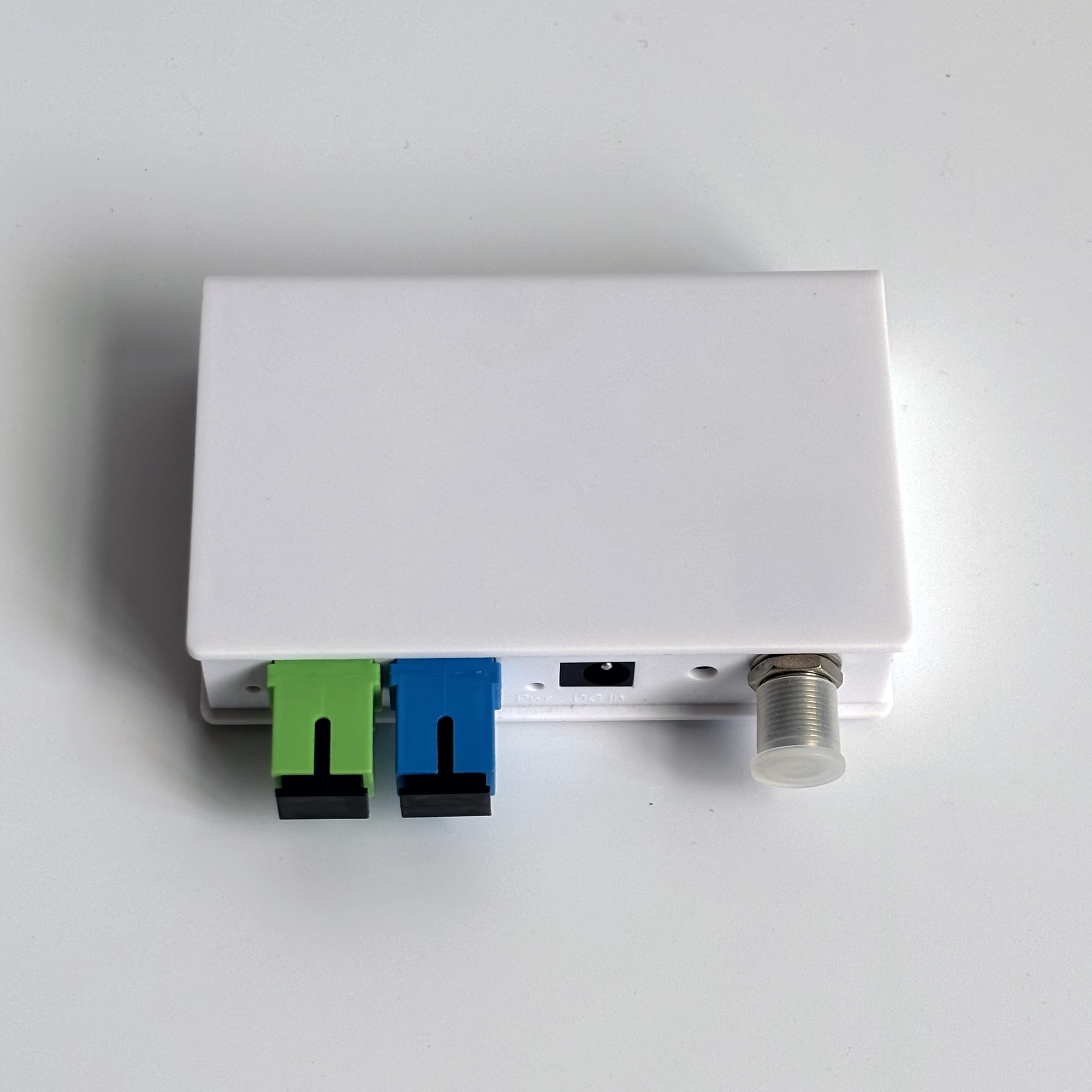

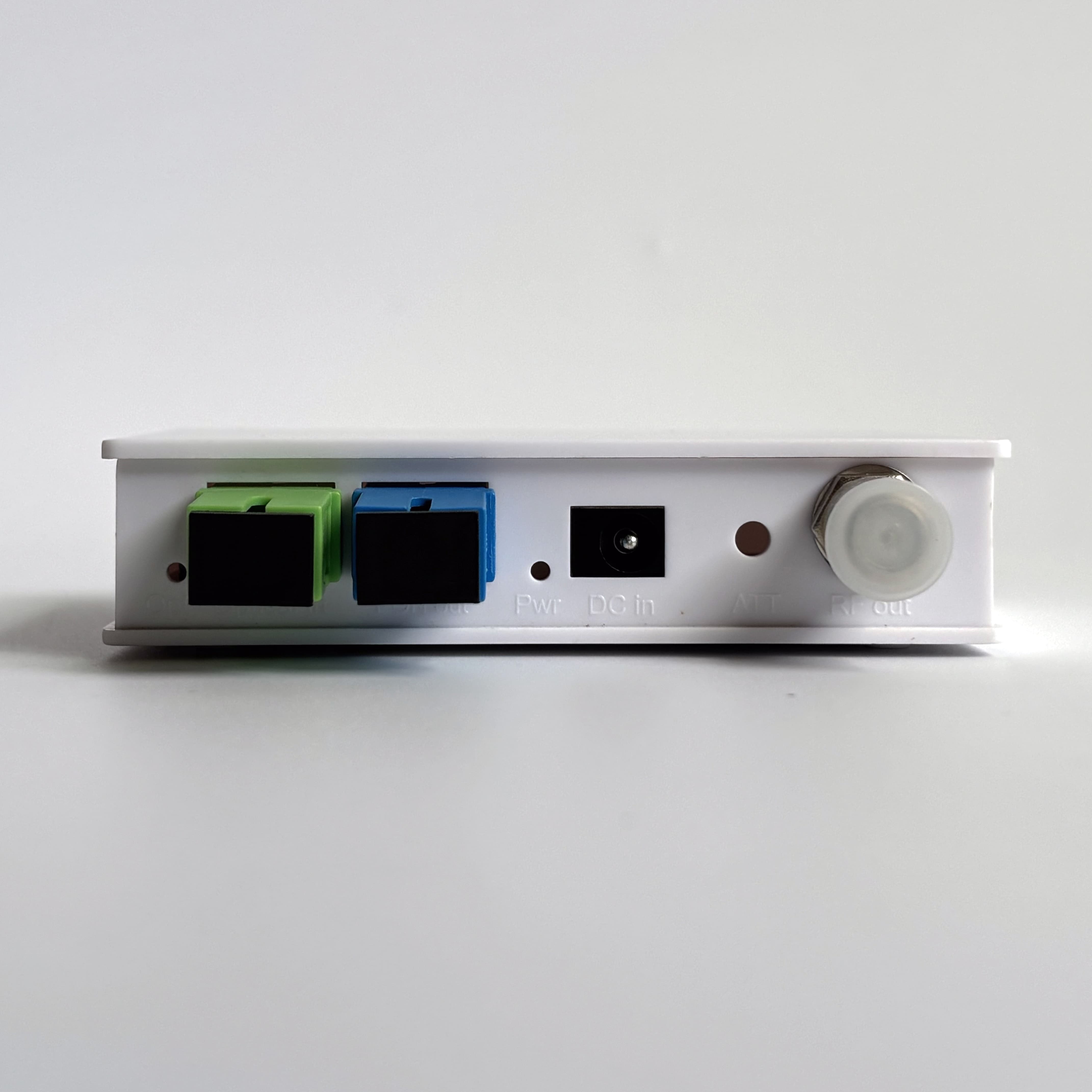

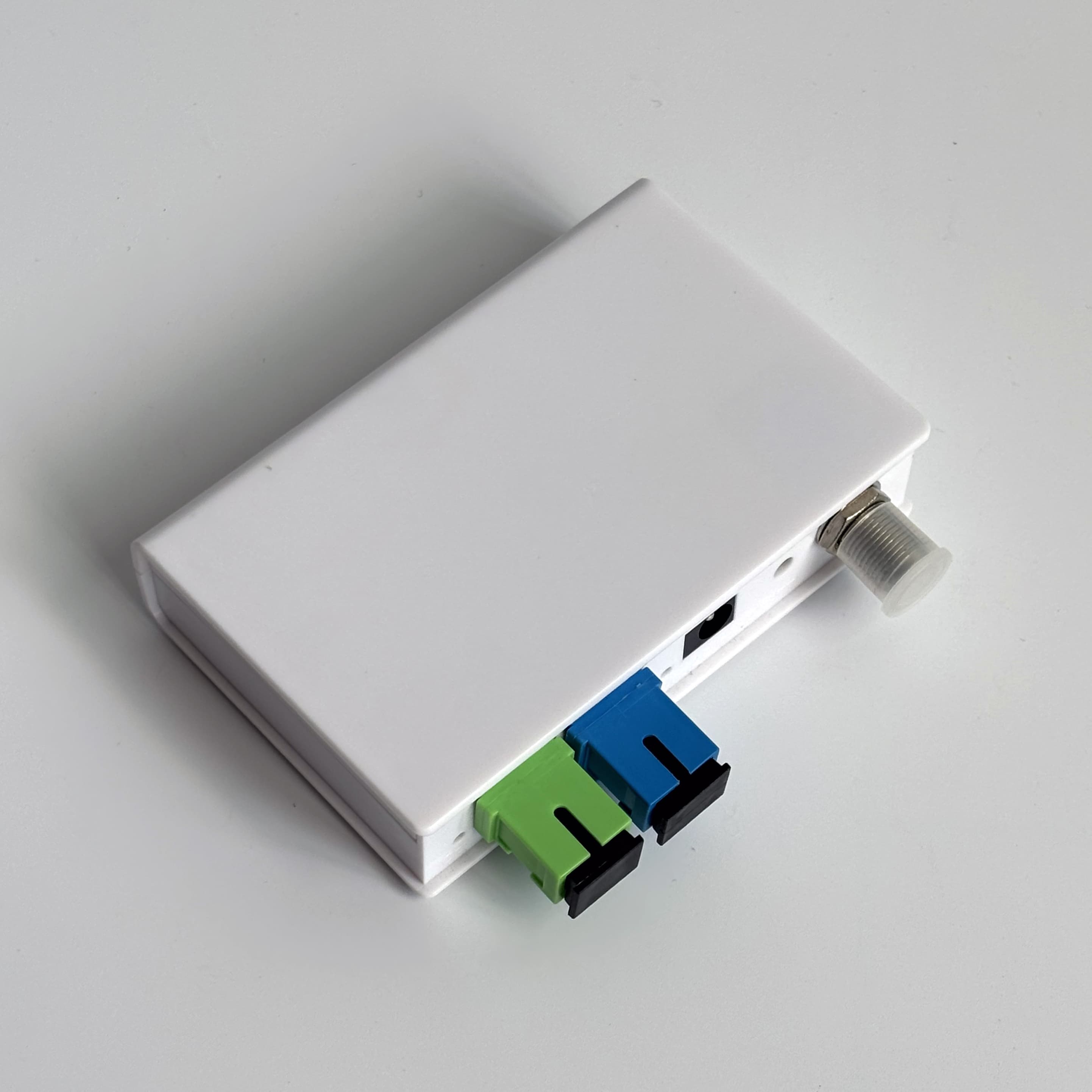

HIGHFLY Fiber FTTH WDM Active optical receiver Rx-A10SW
-
-
WeChat:
+86 18666876980
Technical Specifications
Featrues:
*Designed for FTTH(Fiber To The Home)networks
*Wide frequency range:45~1000MHz&45-2400MHZ
*Wide range of input optical power
*Excellent Linearity and flatness
*Single-mode fiber high return loss
*Using GaAs amplifier active devices
*Ultra low noise technology
*Using DFB coaxial small package laser
*Smaller size and easier install
*Bi-color LED for optical power status indication
*Build-in optical AGC or WDM function
*Using Aluminum alloy or plastic Housing
Product model introduction
|
Item |
SAT TV |
CATV |
AGC |
GPON |
XGS-PON |
|
Rx-A20W |
○ |
|
○ |
○ |
|
|
Rx-A20W-X |
○ |
|
○ |
|
○ |
|
Rx-A30W |
○ |
|
○ |
○ |
|
|
Rx-A30W-X |
○ |
|
○ |
|
○ |
|
Rx-A10W |
|
○ |
○ |
○ |
|
|
Rx-A10W-X |
|
○ |
○ |
|
○ |
|
Rx-A10SW |
|
○ |
○ |
○ |
|
|
Rx-A10SW-X |
|
○ |
○ |
|
○ |
|
Rx-A10NW |
|
○ |
○ |
○ |
|
|
Rx-A10NW-X |
|
○ |
○ |
|
○ |
|
Rx-A201W |
|
○ |
○ |
○ |
|
|
Rx-A201W-X |
|
○ |
○ |
|
○ |
|
Rx-A202W |
|
○ |
○ |
○ |
|
|
Rx-A202W-X |
|
○ |
○ |
|
○ |
|
Rx-A01LW |
|
○ |
|
○ |
|
|
Rx-A01MLW-X |
|
○ |
|
|
○ |
Specificaltions
|
RF Connector |
F-female |
|
Optical Connector |
SC/APC&SC/UPC |
|
Power Supply Connector |
DC5.5×2.1 |
|
Optical Return Loss |
≥45 |
|
Receive Optical Wavelength |
1100~1650nm |
|
Pass Optical Wavelength |
1310/1490nm,1270/1577nm |
|
Receive Optical Power |
-20~+3dBm |
|
Receive Optical AGC |
-10~0dBm |
|
Optical Fiber Type |
Single Mode |
|
Frequency Range |
45~1000MHz or 45~2400MHz |
|
Flatness |
±0.75dB |
|
Output Level |
≥80dBμV(AGC) |
|
Return Loss |
≥14 |
|
CNR |
≥52 |
|
CSO |
≥65 |
|
CTB |
≥62 |
|
Output Impedance |
75Ω |
|
Power Supply |
+5VDC or+12VDC |
|
Power Consumption |
<2W |
Remark:Tx input level80dBμV(OMI=3.8%)
