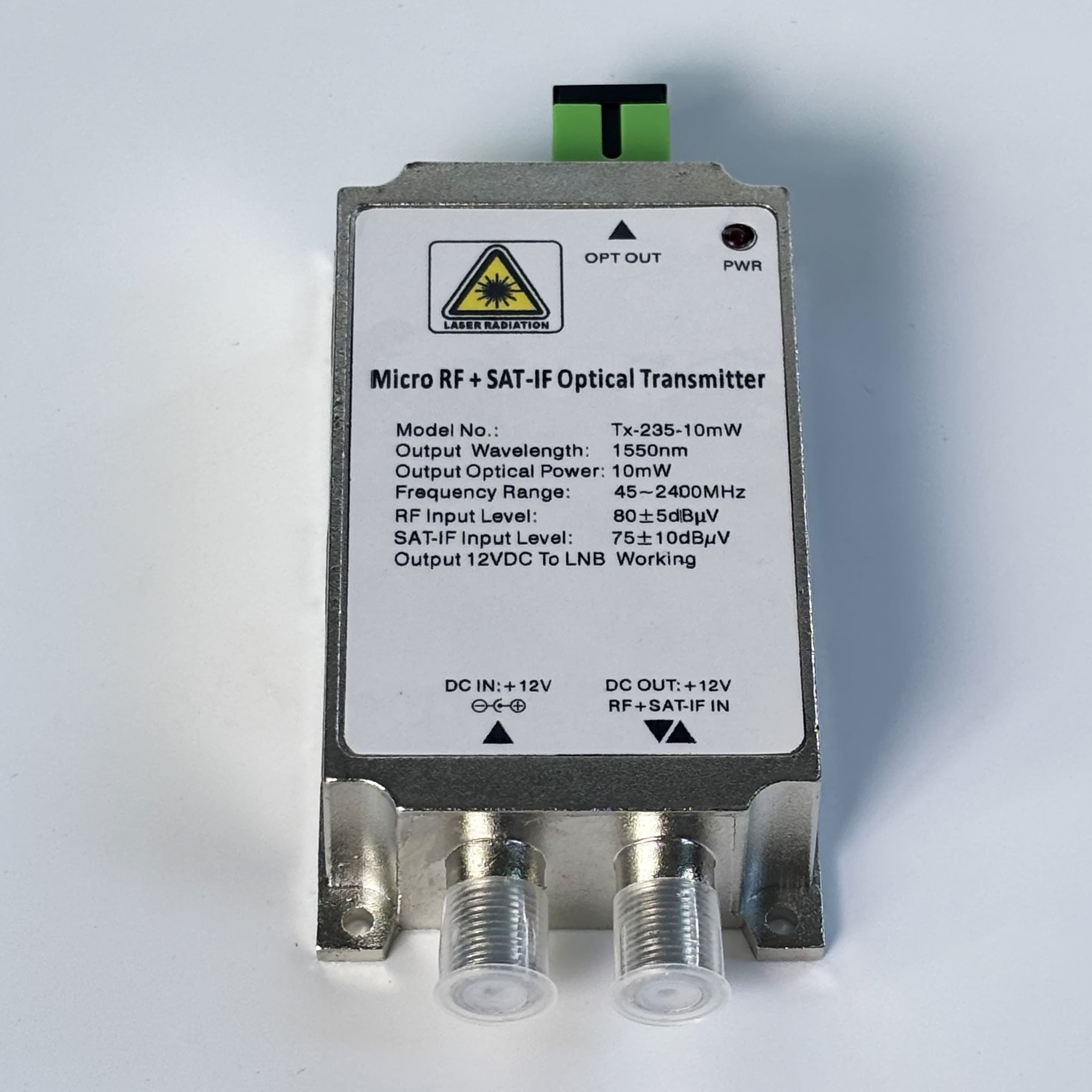

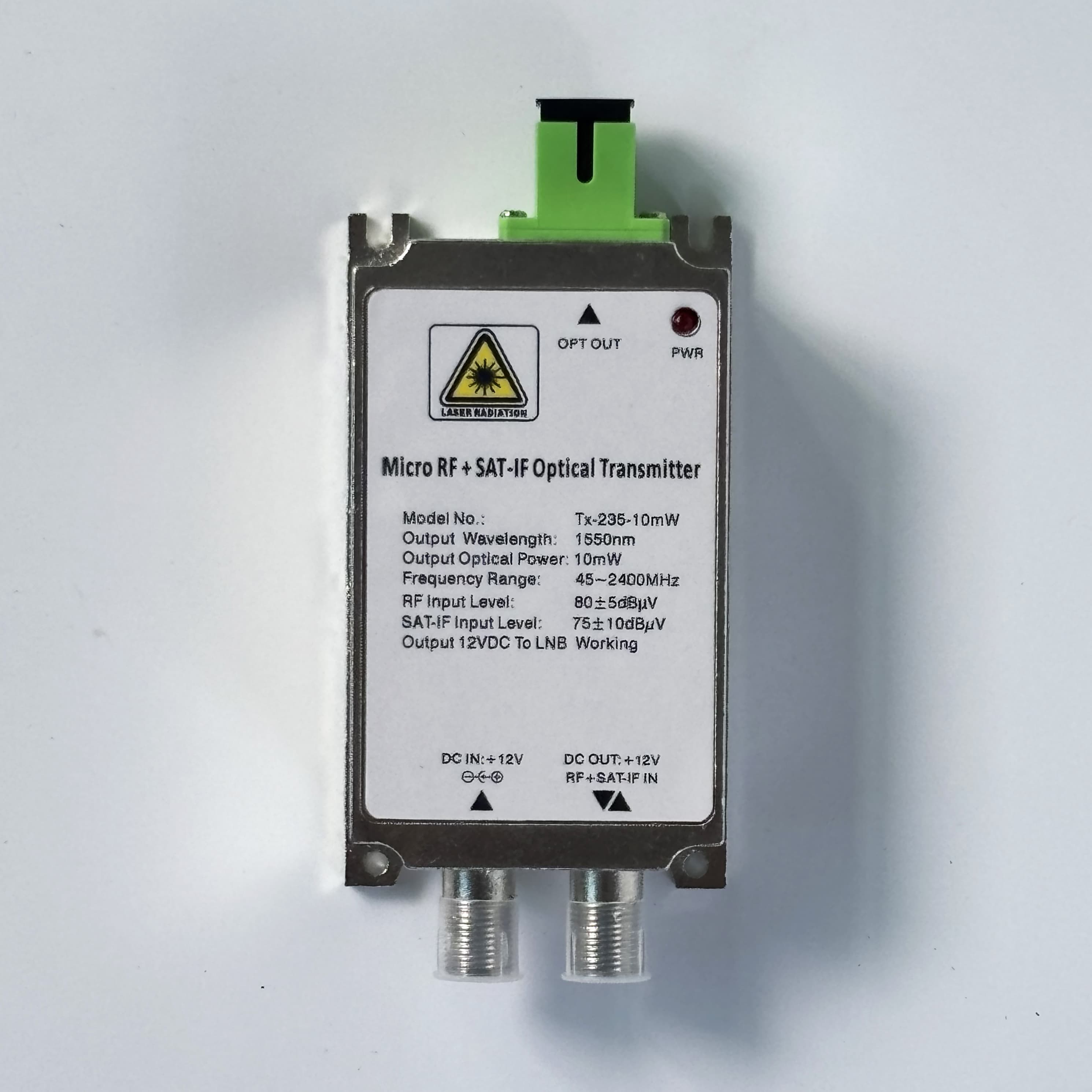

HIGHFLY Fiber FTTH satellite TV optical transmitter Tx-235-10mW-1
-
-
WeChat:
+86 18666876980
Technical Specifications
Featrues:
*Designed for FTTH(Fiber To The Home)networks
*Wide operating frequency range:45~2400MHz
*Excellent Linearity and flatness
*Single-mode fiber high return loss
*Using GaAs amplifier active devices
*UlItra low noise technology
*Using DFB coaxial small package laser
*Up to 28dB optical distribution loss
*Smaller size and easier install
*Output 13/18V,0/22KHz for LNB working
*Using bi-color LEDs for 13/18V,0/22KHz output indication
*Using Aluminum alloy Housing,good heat dissipation performance
Product model introduction
|
Item |
3mW |
10mW |
1310nm |
1550nm |
|
Tx-215-3mW |
○ |
|
|
○ |
|
Tx-215-10mW |
|
○ |
|
○ |
|
Tx-213-3mW |
○ |
|
○ |
|
|
Tx-213-10mW |
|
○ |
○ |
|
|
Tx-225-3mW |
○ |
|
|
○ |
|
Tx-225-10mW |
|
○ |
|
○ |
|
Tx-223-3mW |
○ |
|
○ |
|
|
Tx-223-10mW |
|
○ |
○ |
|
Specificaltions
|
RF Connector |
F-female |
|
Optical Connector |
SC/APC |
|
Power Supply Connector |
DC5.5×2.1 |
|
Optical Return Loss |
≥45 |
|
Output Optical Wavelength |
1310/1550nm(optional) |
|
Output Optical Power |
3mW/10mW(5dBm/10dBm) |
|
Optical Fiber Type |
Single Mode |
|
Frequency Range |
45~2150MHz or 45~2400MHz |
|
Flatness |
±0.75dB |
|
Input Level |
80±5dBμV |
|
Return Loss |
≥14 |
|
CNR |
≥52 |
|
CSO |
≥65 |
|
CTB |
≥62 |
|
Input Impedance |
750Ω |
|
LNB Power Supply |
13/18V |
|
Maximum Current For LNB |
350mA |
|
22KHzAccuracy |
22±4KHz |
|
Power Supply |
+12VDC |
|
Power Consumption |
<3W |
|
Dimensions |
105x84×25mm |
