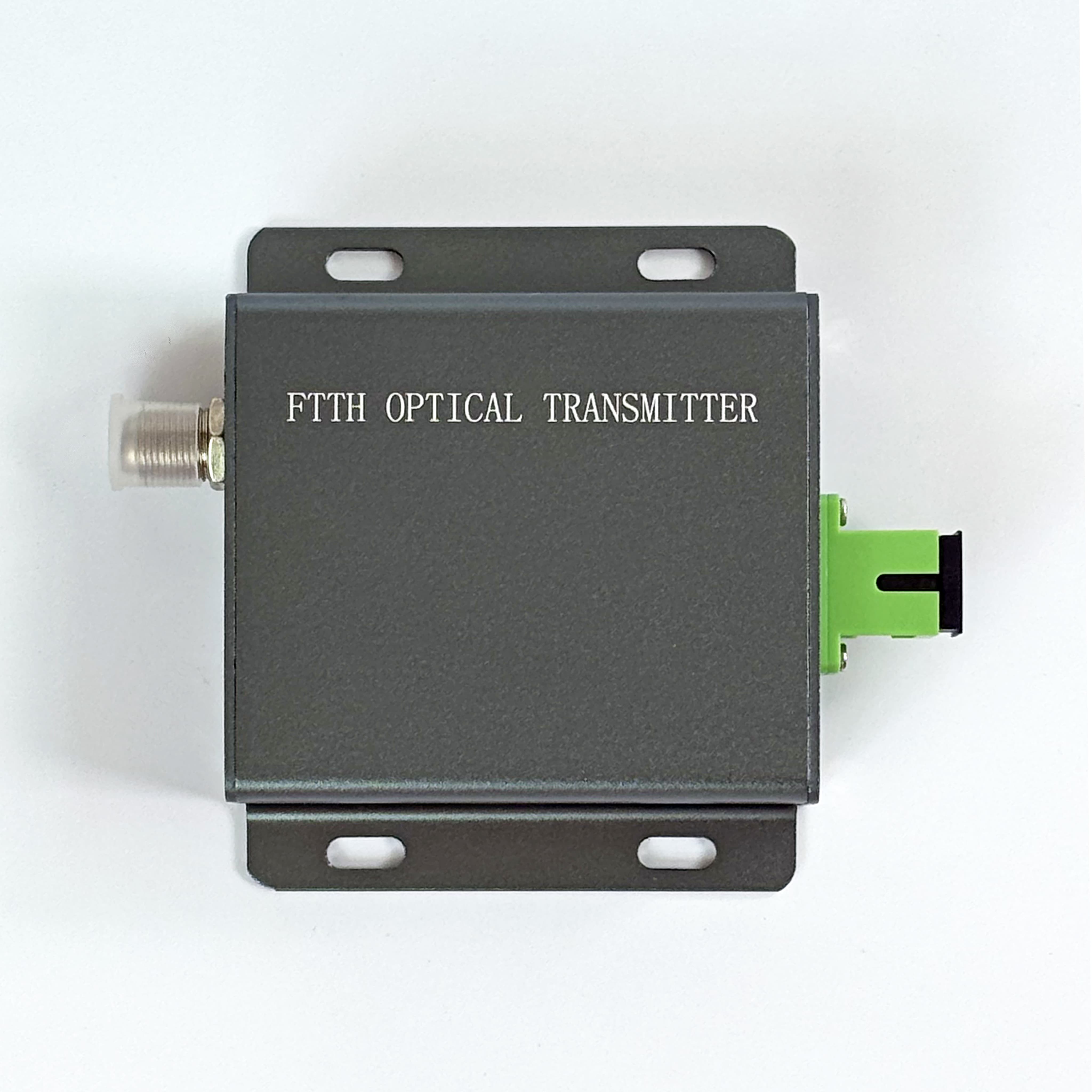

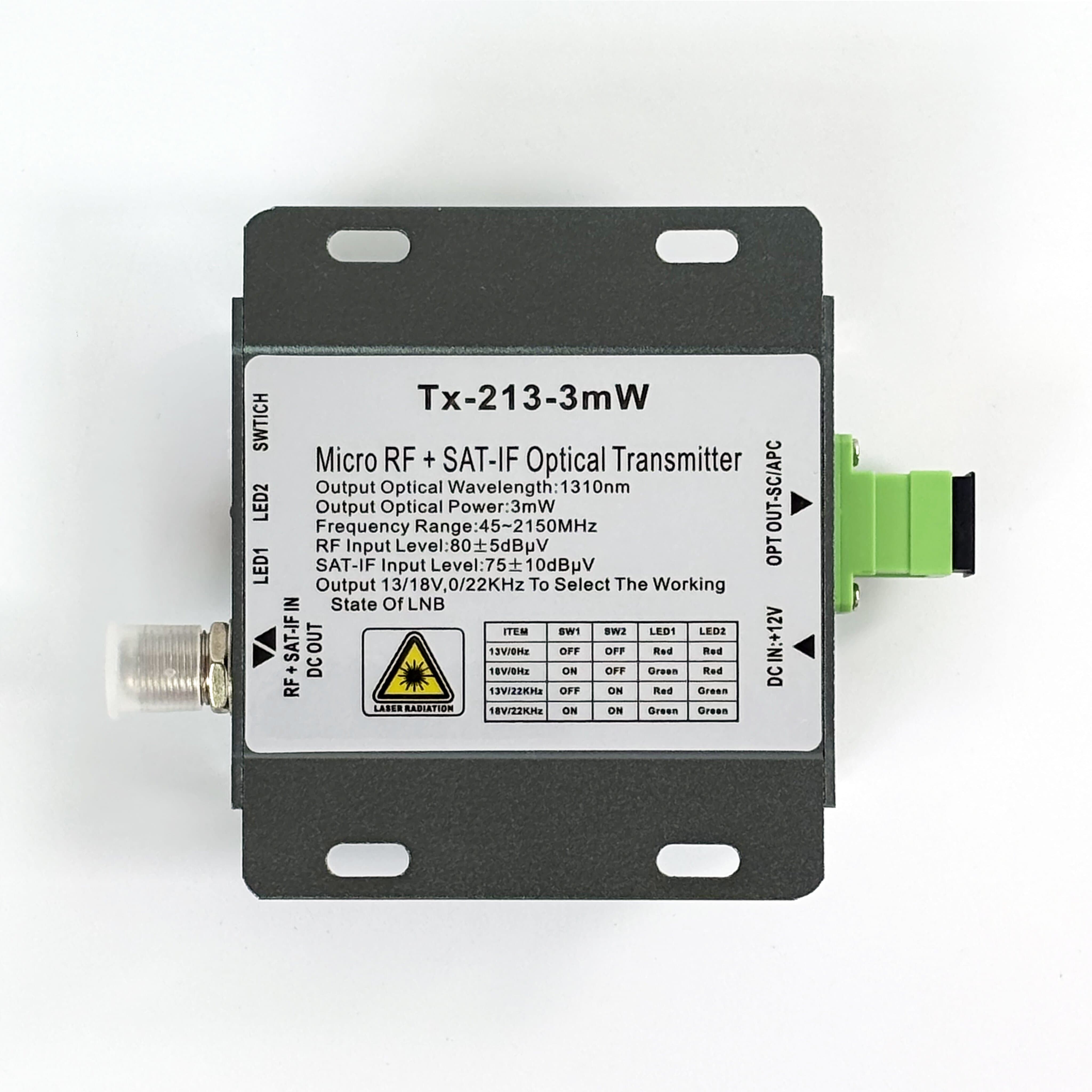

HIGHFLY Fiber FTTH satellite TV optical transmitter Tx-213-3mW
-
-
WeChat:
+86 18666876980
Technical Specifications
Featrues:
1. Designed for FTTH(Fiber To The Home) networks
2. Wide operating frequency range:45~2150MHz
3. Excellent Linearity and flatness
4. Single-mode fiber high return loss
5. Using GaAs amplifier active devices
6. Ultra low noise technology
7. Using DFB coaxial small package laser
8. Smaller size and easier install
9. Output 13/18V、0/22KHz for LNB working

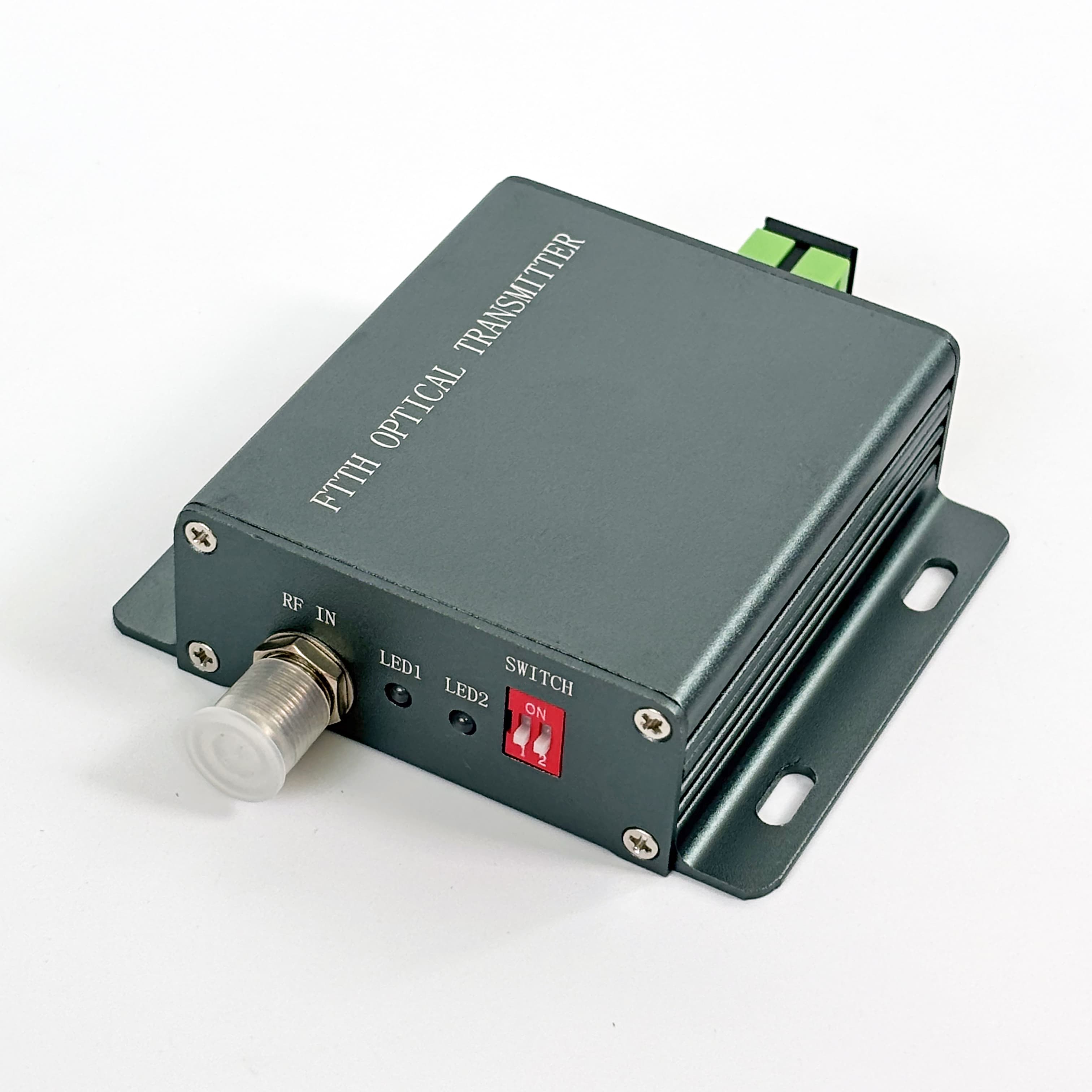

10. Using bicolor LEDs for 13/18V,0/22KHz output indication
11. Using Aluminum alloy Housing, good heat dissipation performance
Product model introduction
|
Number |
Item |
Unit |
Description |
Remark |
|
Customer Interface |
||||
|
1 |
RF Connector |
|
F-female |
|
|
2 |

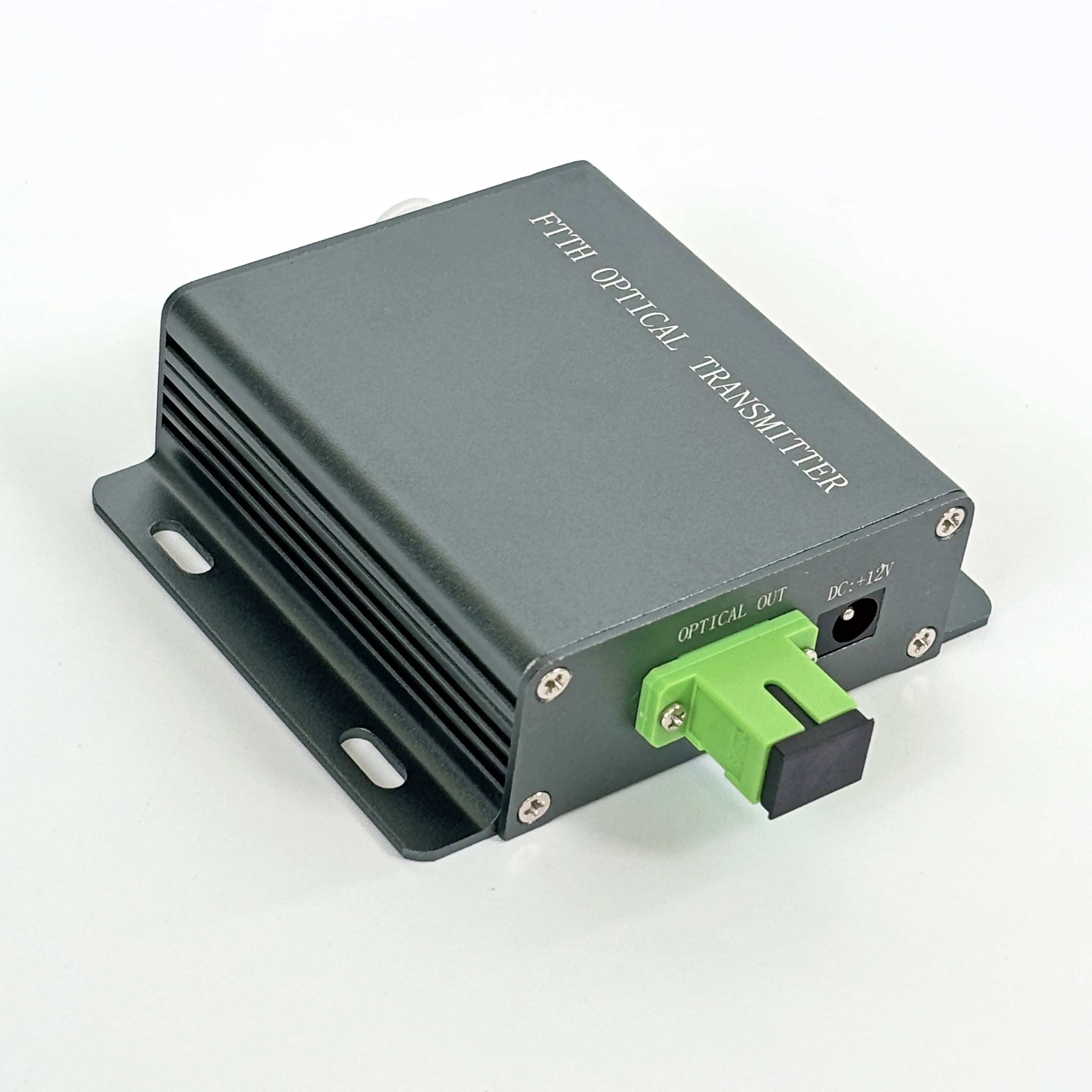

Optical Connector |
|
SC/APC |
|
|
3 |

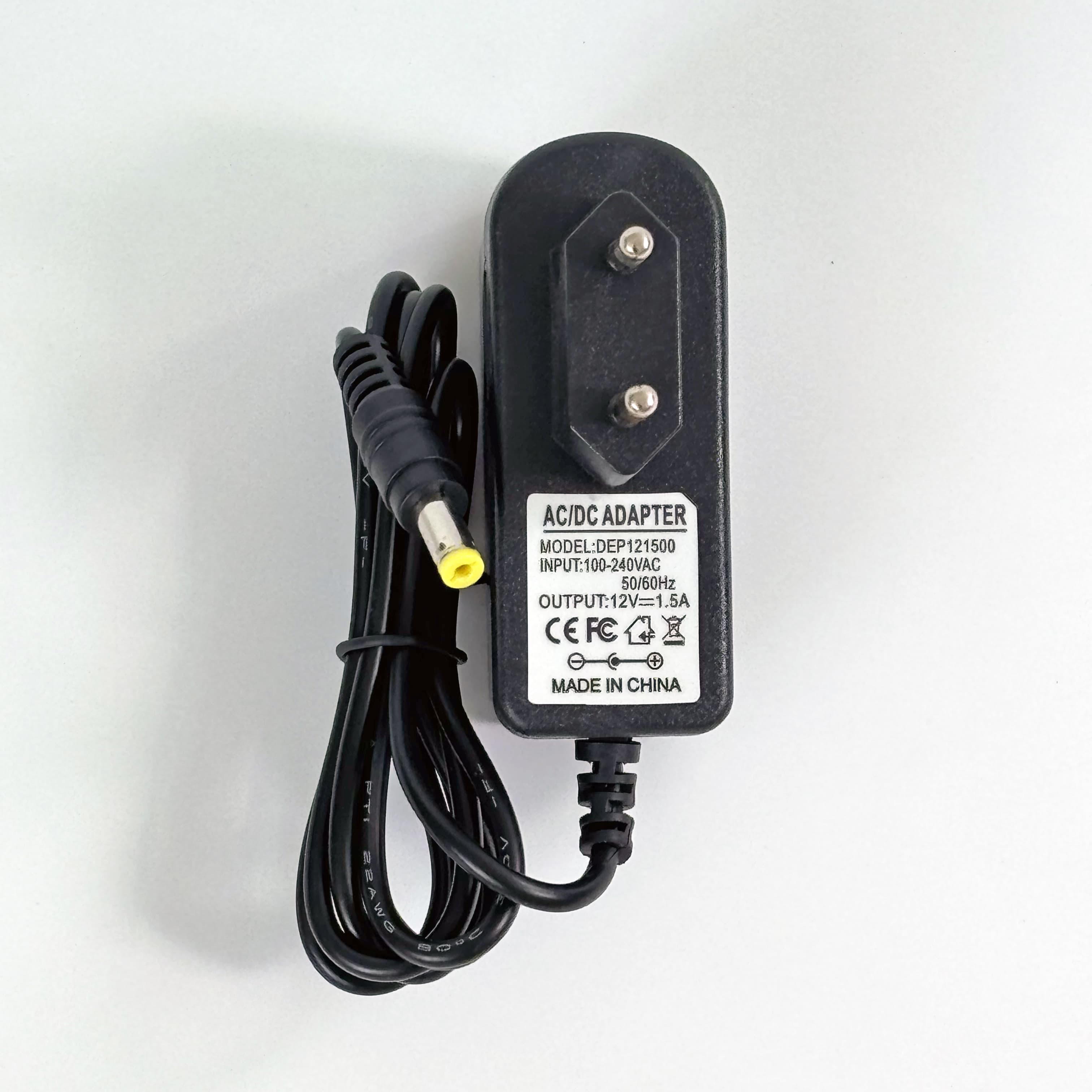

Power Adapter |
|
DC2.1 |
|
|
Optical Parameter |
||||
|
4 |
Optical Return Loss |
dB |
≥45 |
|
|
5 |
Output Optical Wavelength |
nm |
1310 |
|
|
6 |
Output Optical Power |
mW |
3 |
5dBm |
|
7 |
Optical Fiber Type |
|
Single Mode |
|
|
RF+SAT-IF Parameter |
||||
|
8 |
Frequency Range |
MHz |
45~860 |
|
|
950~2150 |
|
|||
|
9 |
Flatness |
dB |
±1 |
|
|
10 |
Input Level |
dBµV |
80±5 |
RF |
|
75±10 |
SAT-IF |
|||
|
11 |
Input Impedance |
Ω |
75 |
|
|
12 |
Return Loss |
dB |
≥12 |
|
|
13 |
C/N |
dB |
≥52 |
|
|
14 |
CSO |
dB |
≥65 |
|
|
15 |
CTB |
dB |
≥62 |
|
|
16 |
LNB Power supply |
V |
13/18 |
|
|
17 |
Maximum Current For LNB |
mA |
350 |
|
|
18 |
22KHz Accuracy |
KHz |
22±4 |
|
|
Other Parameter |
||||
|
19 |
Power Supply |
VDC |
12 |
|
|
20 |
Power Consumption |
W |
<3 |
|
|
21 |
Dimensions |
mm |
105x84x25 |
|
Why choose us
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years
Application example
