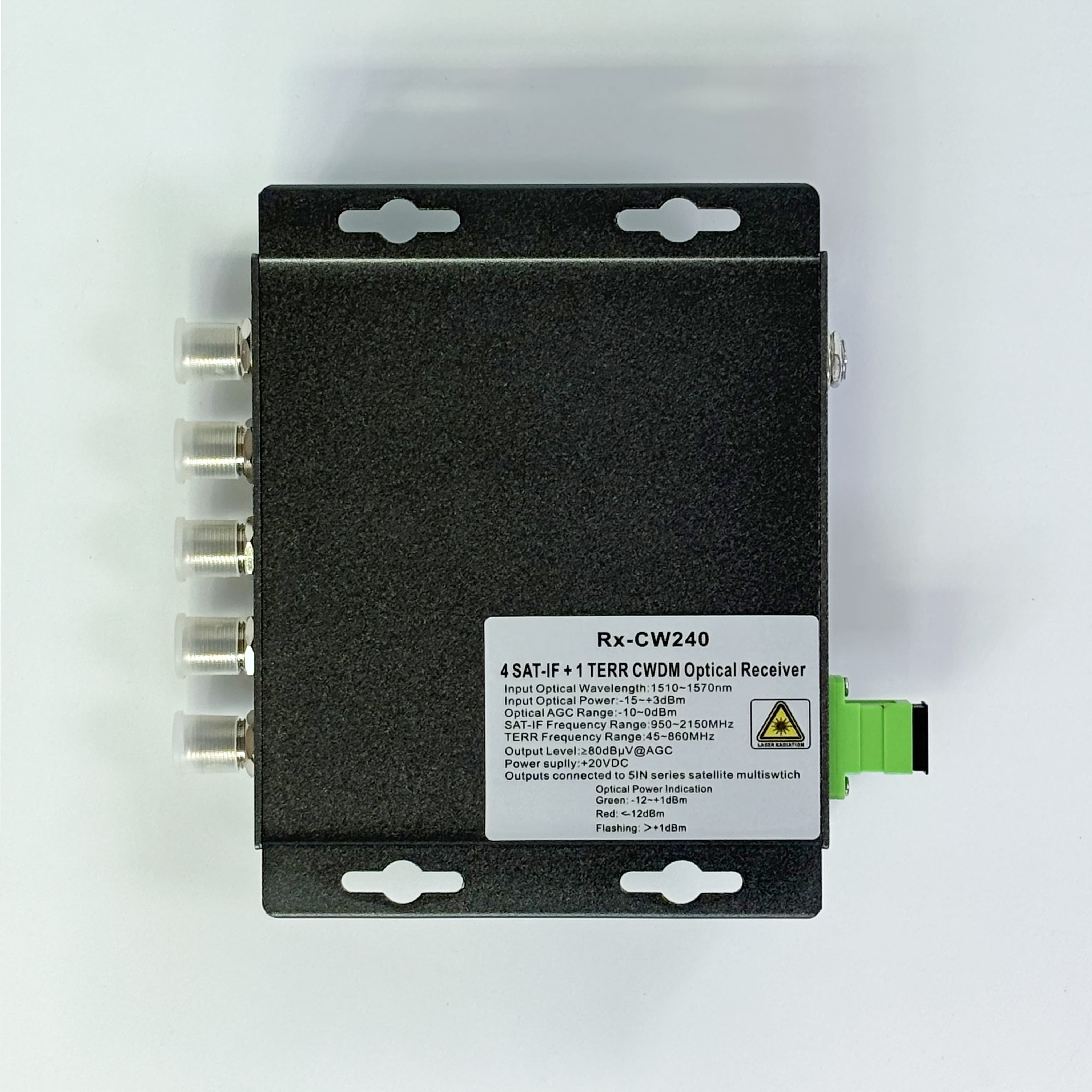

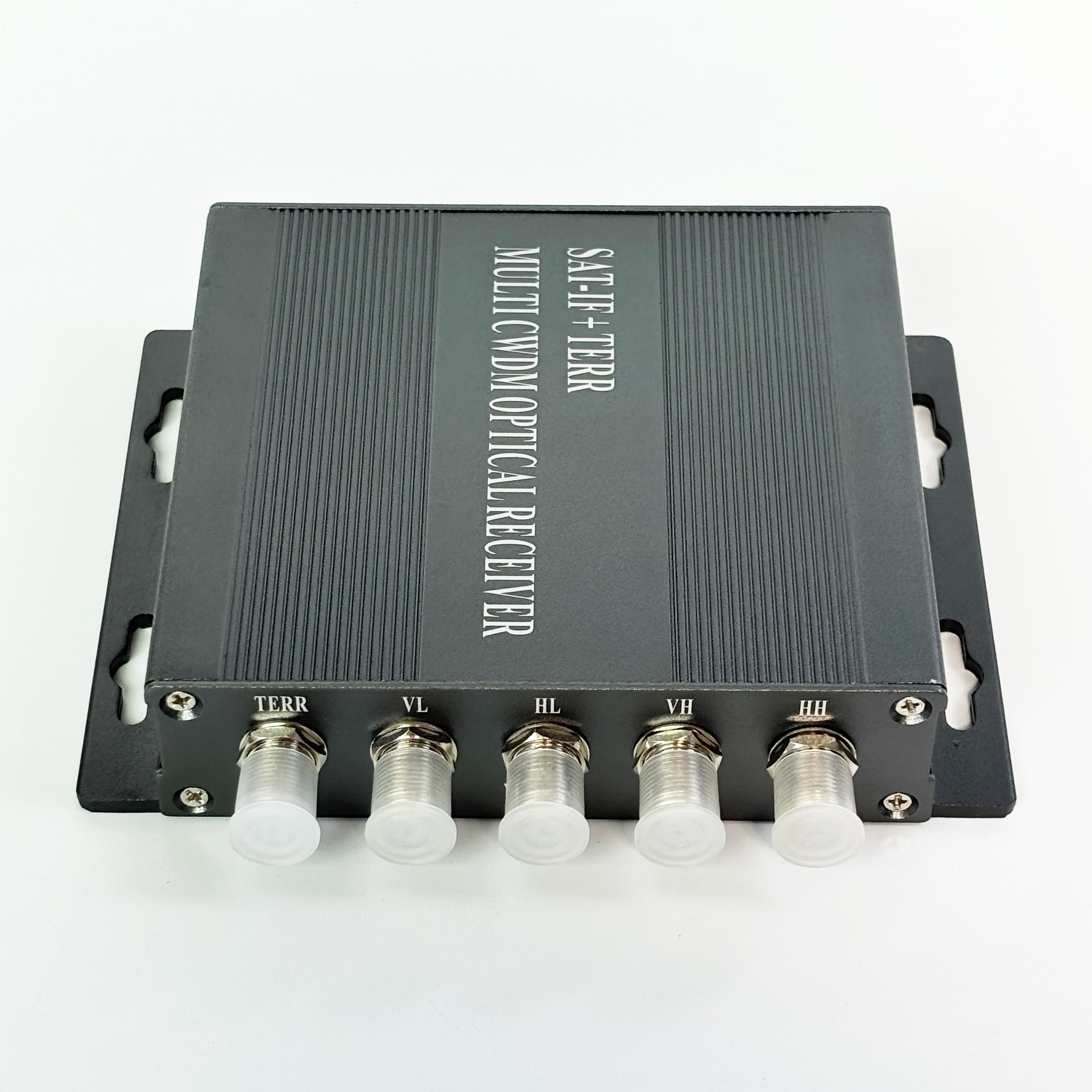

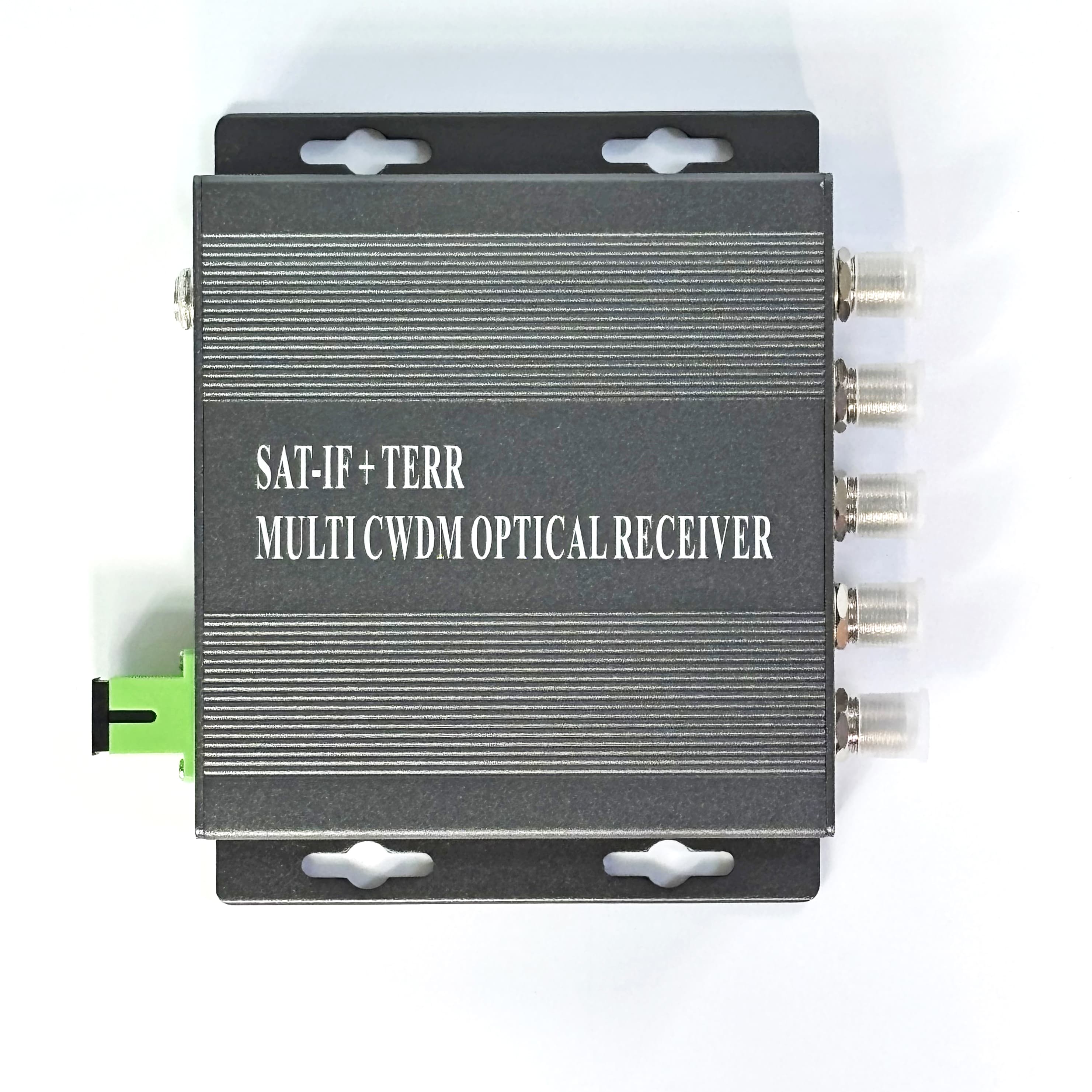

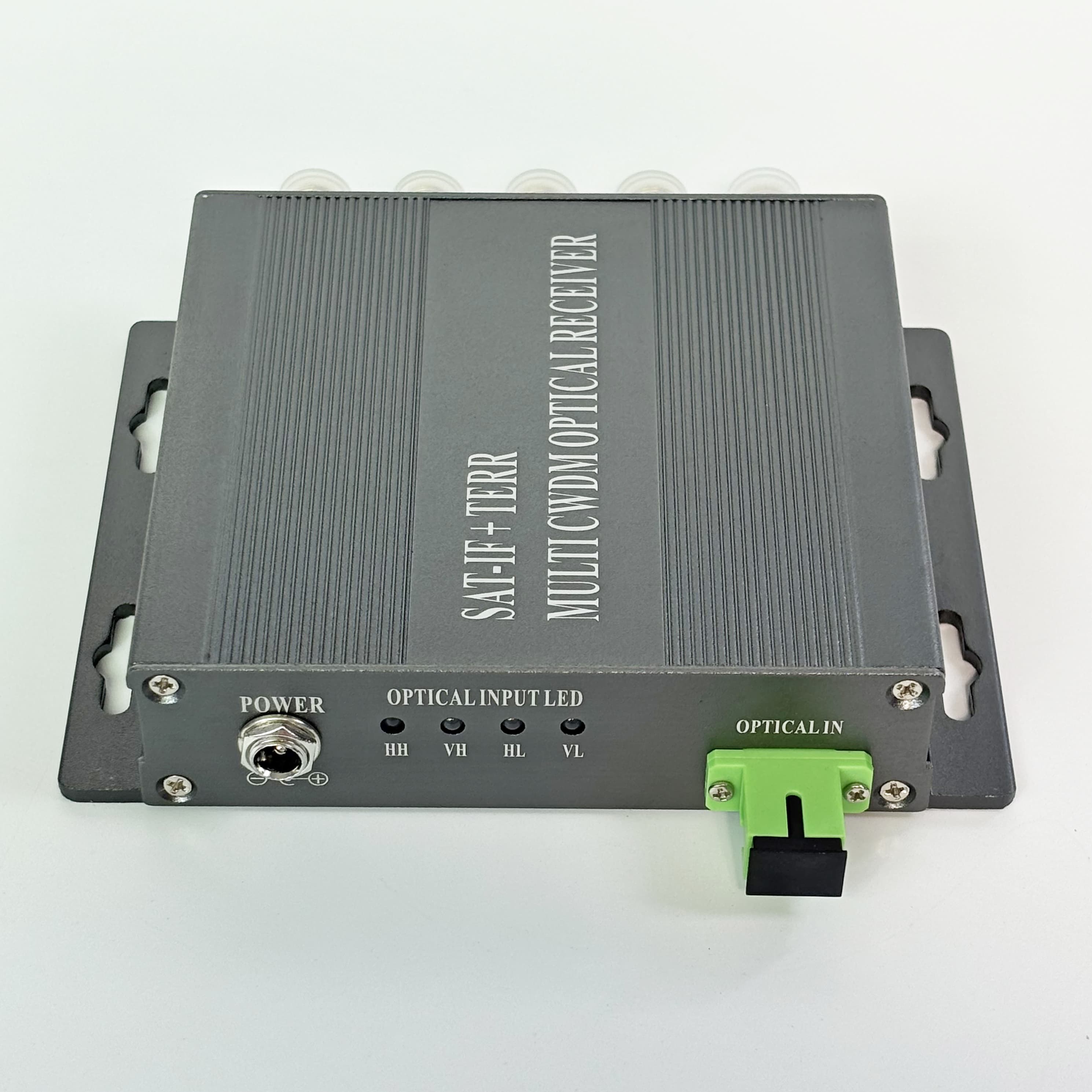

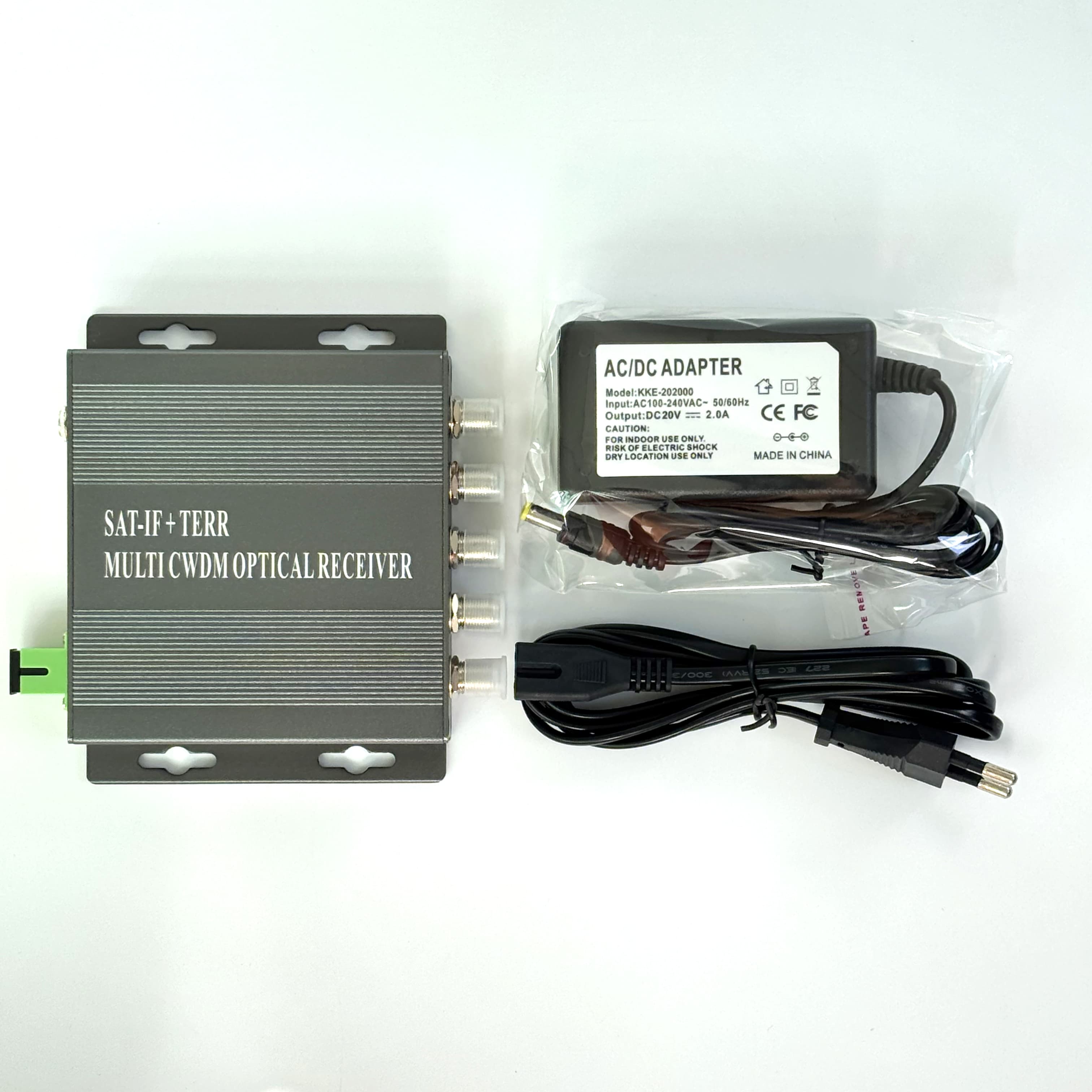

HIGHFLY CWDM multi SAT IF+Terr FTTH optical Receiver Rx-CW240
-
-
WeChat:
+86 18666876980
Technical Specifications
Featrues:
*Designed for satellite TV optical transmission system
*Wide operating frequency range:45-860MHz/950-2400MHz
*Excellent Linearity and flatness
*Single-mode fiber high return loss
*Using GaAs amplifier active devices
*UItra low noise technology
*Build-in CWDM,Using DFB coaxial small package laser(Transmitter)
*Up to 21dB optical distribution loss
*Outputs 13/18V 、0/22KHz to LNB working(Transmitter)
*A LNB mode switch offers the possibility to use either Quattro or QUAD LNB(Transmitter)
*Build-in CWDM,Using High linear PD(Receiver)
*Build-in opticalAGC function with MCU (Receiver)
*Outputs connected to the 3&5 IN series satellite multiswitch (Receiver)
*Optical power Green LED or be-color LED indication
*Power supply is European,American and British standard is optional

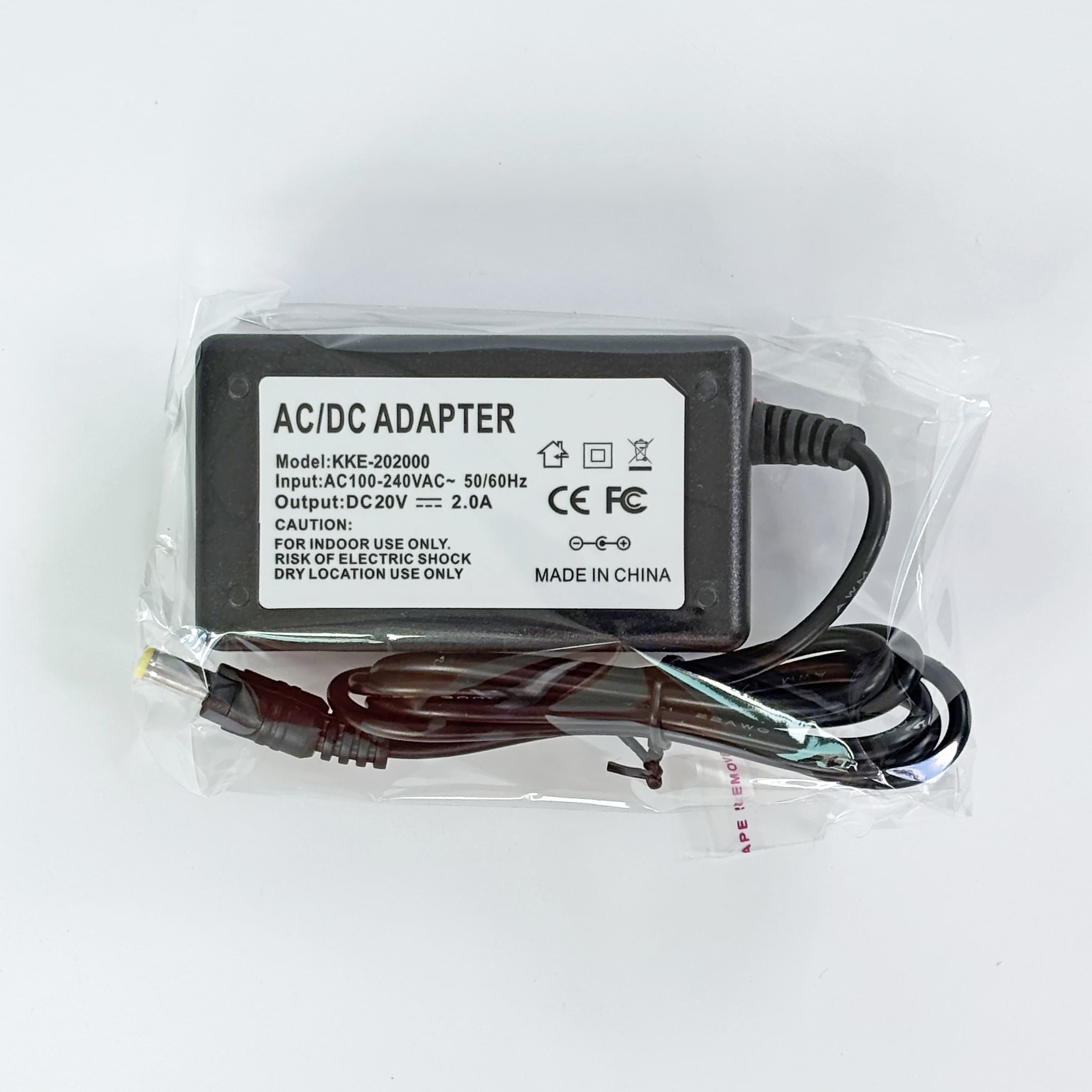

*Optical receiver power supply can be derived from the power adapter or satellite multiswitch
Product model introduction
|
Item |
SAT Port |
TERR Port |
Bandwidth |
Wavelength |
|
Tx-CW240 |
4SAT-IF |
1TERR |
45-860MHz 950-2150MHz |
1510~1570nm |
|
Tx-CW220 |
2SAT-IF |
1TERR |
45-860MHz 950-2150MHz |
1310,1550nm |
|
Tx-CW241 |
4SAT-IF |
/ |
45-2400MHz |
1510~1570nm |
|
Tx-CW231 |
2SAT-IF |
1TERR |
45-260MH |
1310,1550nm |
|
Rx-CW240 |
4SAT-IF |
1TERR |
45-860MHz 950-2150MHz |
1510~1570nm |
|
Rx-CW220 |
2SAT-IF |
1TERR |
45-860MHz 950-2150MHz |
1310,1550nm |
|
Rx-CW241 |
4SAT-IF |
/ |
45-2400MHz |
1510~1570nm |
|
Rx-CW231 |
2SAT-IF |
1TERR |
45-860MHz 45-2400MHz |
1310,1550nm |
Specificaltions
|
RF Connector |
F-female |
|
Optical Connector |
SC/APC |
|
Power Supply Connector |
DC5.5x2.1 |
|
Optical Return Loss |
≥45 |
|
Output Optical Power |
3mW(5dBm)Transmitter |
|
Input Optical Power |
-18~+3dBm Receiver |
|
Optical Fiber Type |
Single Mode |
|
Input Level |
80±5dBμV Transmitter |
|
output Level |
≥80dBμV(AGC)Receiver |
|
Return Loss |
≥12 |
|
CNR |
≥52 |
|
CSO |
≥65 |
|
CTB |
≥62 |
|
Input Impedance |
75Ω |
|
LNB Power Supply |
13/18V |
|
Maximum Current For LNB |
350mA |
|
22KHzAccuracy |
22±4KHz |
|
Power Supply |
+20VDC |
|
Power Consumption |
<6W |
|
Dimensions |
135x132x28mm |
