OEM Norsat 5G Filter Quality 3700-4200MHz Anti-Interference C Band 5G Filter FT6B37420040
Product parameters
| Electrical Specifications | |||
| Type No. |
FT6B37420040 |
||
| Frequency Band (MHz) |
3700-4200 |
||
| Insertion Loss (dB)(Full temperature,Outcluding connectors) |
≤1.4@3700MHz,≤0.6@4200MHz,0.3@3800-4100MHz |
||
| Rejection (dB) |
≥70@3400-3580MHz,≥70@3580MHz,≥60@3600MHz, ≥60@3640MHz,≥55@3660MHz,≥50@3680MHz,≥20@4250MHz |
||
| Return Loss (dB)/VSWR |
≤-16/1.4:1 |
||
| Input Power (W) |
<100 |
||
| Grorp Delay(ns) |
/ |
||
| Impedance (Ω) |
50 |
||
| Mechanical Specifications | Environmental & Compliance | ||
| Dimensions,HxWxD (mm) |
149x98.5x70 |
Operational Temperature (°C) |
-20 to +65 |
| Weight (kg) |
0.95 |
Operational Humidity (%) |
≤95 |
| Packing Size(mm) |
222x172x132 |
Environment |
IP66 |
| Connector Type |
CPR-229G(input),CPR-229F(output) |
Application |
Indoor and Outdoor |
| Color |
Light Gray |
RoHS |
Compliant |
| Mounting |
Plane mounting |
||

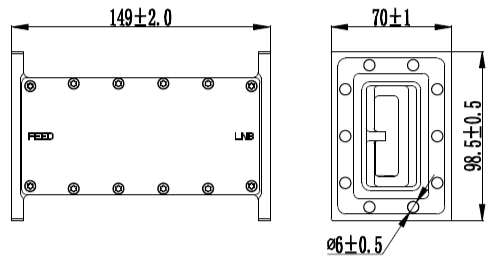

| Outline Drawing | |||
