OEM Norsat 5G Filter Quality 3700-4200MHz Anti-Interference C Band 5G Filter FT6B37420110
Electrical Specifications
| Electrical Specifications | |||
| Type No. |
FT6B37420110 |
||
| Frequency Band (MHz) |
3700-4200 |
||
| Insertion Loss (dB)(Full temperature,Outcluding connectors) |
≤0.5@3700&4200MHz, 0.3@3800-4100MHz |
||
| Rejection (dB) |
≥70@3400-3580MHz,≥70@3580MHz,≥70@3600MHz, ≥20@4250MHz |
||
| Return Loss (dB)/VSWR |
≤-16/1.4:1 |
||
| Input Power (W) |
<100 |
||
| Impedance (Ω) |
50 |
||
| Mechanical Specifications | Environmental & Compliance | ||
| Dimensions,HxWxD (mm) |
149x98.5x70 |
Operational Temperature (°C) |
-20 to +65 |
| Weight (kg) |
0.95 |
Operational Humidity (%) |
≤95 |
| Packing Size(mm) |
222x172x132 |
Environment |
IP66 |
| Connector Type |
CPR-229G(input),CPR-229F(output) |
Application |
Indoor and Outdoor |
| Color |
Light Gray |
RoHS |
Compliant |
| Mounting |
Plane mounting |
||

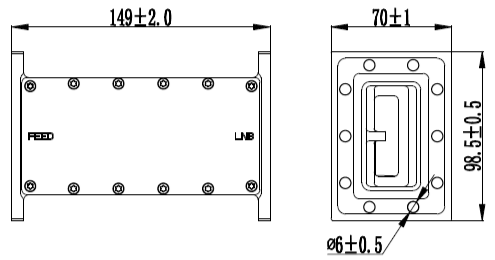

| Outline Drawing | |||
Media Integrity
Supports reliable news dissemination by preventing 5G interference in media transmissions.
Military-grade Isolation
Offers robust signal isolation for military operations, ensuring the confidentiality and reliability of communications.
Aviation Safety
Critical for air traffic control, the filter maintains clear communications, contributing to flight safety.
Hospitality Experience
Enhances the guest experience by ensuring uninterrupted satellite TV and communication services in hospitality settings.
