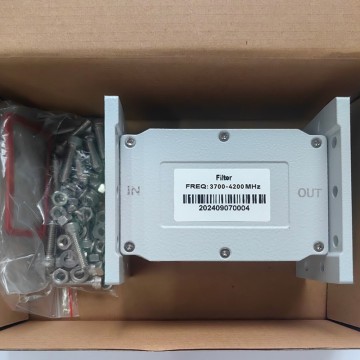

OEM Norsat 5G filter Quality 3700-4200MHz anti-interference C band 5G filter FT6B37420120
ELEVATING SERVICE
Electrical Specifications | |||
Type No. |
FT6B37420120 |
||
Frequency Band (MHz) |
3700-4200 |
||
Insertion Loss (dB)(Full temperature,Outcluding connectors) |
1.5 max |
||
Rejection (dB) |
60 Min @3600MHz,60 Min @3640MHz,55 Min @3660MHz,50 Min @3680MHz |
||
Return Loss (dB)/VSWR |
≤-15.6/1.4:1 |
||
Input Power (W) |
<100 |
||
Grorp Delay variation with +/-0.5MHz(ns) |
3 |
||
Impedance (Ω) |
50 |
||
Mechanical Specifications |
Environmental & Compliance |
||
Dimensions,HxWxD (mm) |
100.5x98.7x70 |
Operational Temperature (°C) |
-40 to +60 |
Weight (kg) |
0.6 |
Operational Humidity (%) |
≤95 |
Packing Size(mm) |
180x170x130 |
Environment |
IP66 |
Connector Type |
CPR-229G(input),CPR-229F(output) |
Application |
Indoor and Outdoor |
Color |
Apple White |
RoHS |
Compliant |
Mounting |
Plane mounting |
|
|
Outline Drawing | |||
Media Outlets
Provides a stable and consistent communication platform for news agencies and media entities.
Defense Systems
Offers protection to critical military communication channels, ensuring they remain undisturbed by 5G signal interference.
Air Traffic
Enhances the reliability of communication systems essential for the smooth operation of civil aviation.
Hospitality Sector
Secures the communication networks of hotels and other hospitality establishments, preventing interference from 5G signals.
