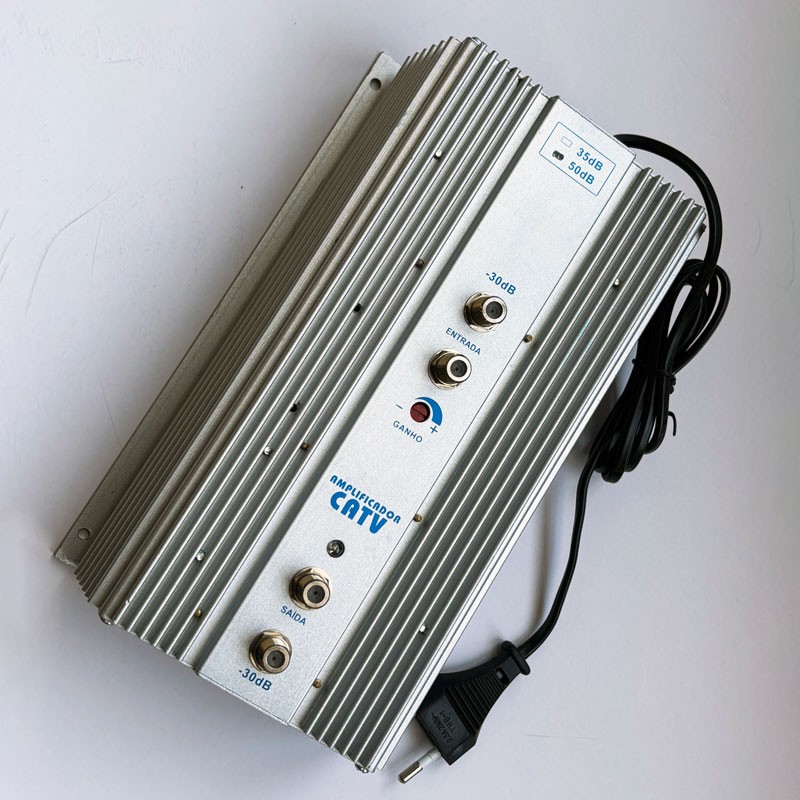

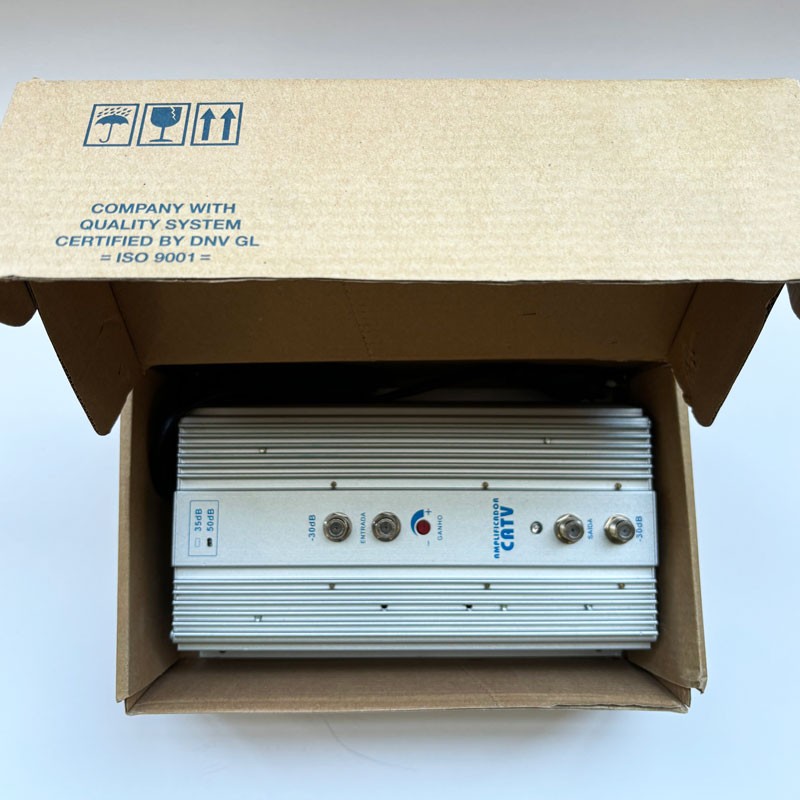

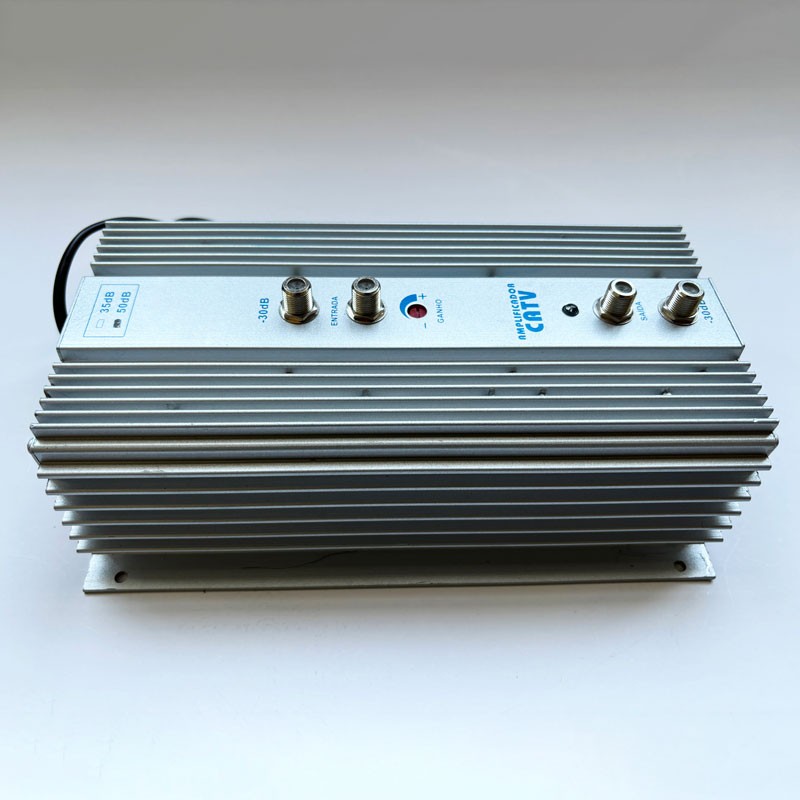

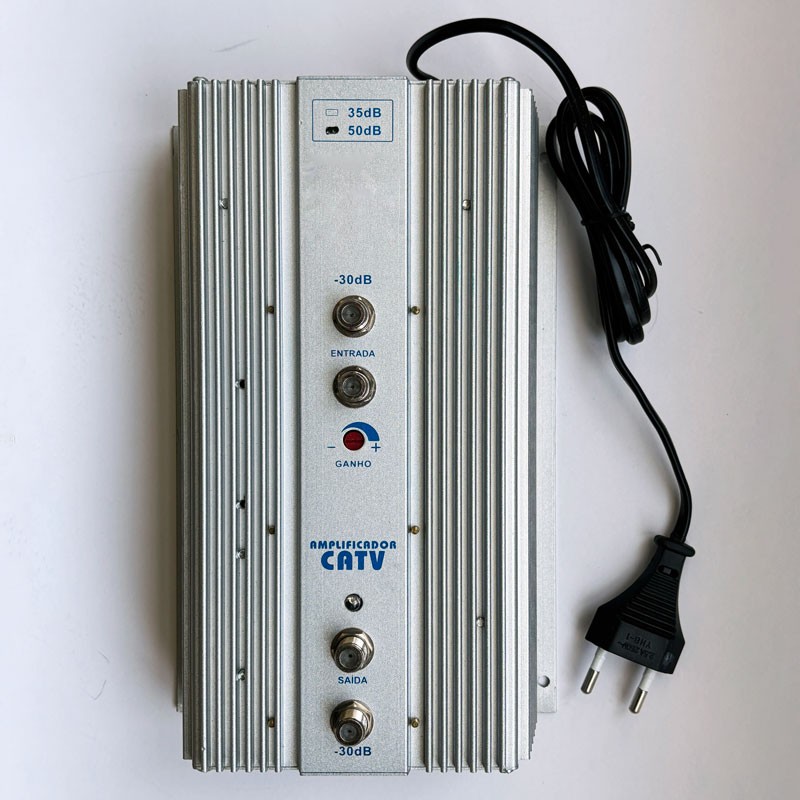

PRO 50dB 1 in 1 out power amplifier CATV amplificador
AMPLIFICADOR BANDA LARGA
BROAD BAND AMPLIFIER
-
-
WeChat:
+86 18666876980
Especificações/ Specifications
|
CÓDIGO |
PQAP-7500G3 |
CODE |
|
|
Elétricas |
|
Unid./ Unit |
Electrical |
|
Faixa defrequência |
54~698 |
MHz |
Frequency range |
|
Ganho |
50 ±2 |
dB |
Return loss |
|
Figuraderuído |
≤5,5 @ 54~590MHz ≤6,5 @ 600~698MHz |
FdB |
Noise Figure |
|
Nível desaída |
60 |
dBmV |
Temperature range |
|
Saída de teste |
-30 ±3 |
dB |
Test point |
|
Controle deganho |
15 ±2 |
dB |
Gain control |
|
Perdade retorno entrada |
≥10 |
dB |
Input return loss |
|
Intermodulação 3º ordem |
≥60 (Out 48dBmV) |
dBc |
3º order Intermodulation |
|
Tecnologia do Hibrido |
Push- Pull |
dB |
Hibrid Technology |
|
Impedância |
75 |
Ohms |
Impedance |
|
Tensãode entrada |
90~240 |
VAC |
Input Voltage |
|
Mecânicas |
|
Unid./ Unit |
Mechanical |
|
Dimensões |
190x140x75 |
mm |
Dimensions |
|
Peso |
0,8 |
kg |
Weigth |
|
Conectores |
Tipo "F" femêa/ "F" female type |
|
Connectors |
Why choose us
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years
Application example
