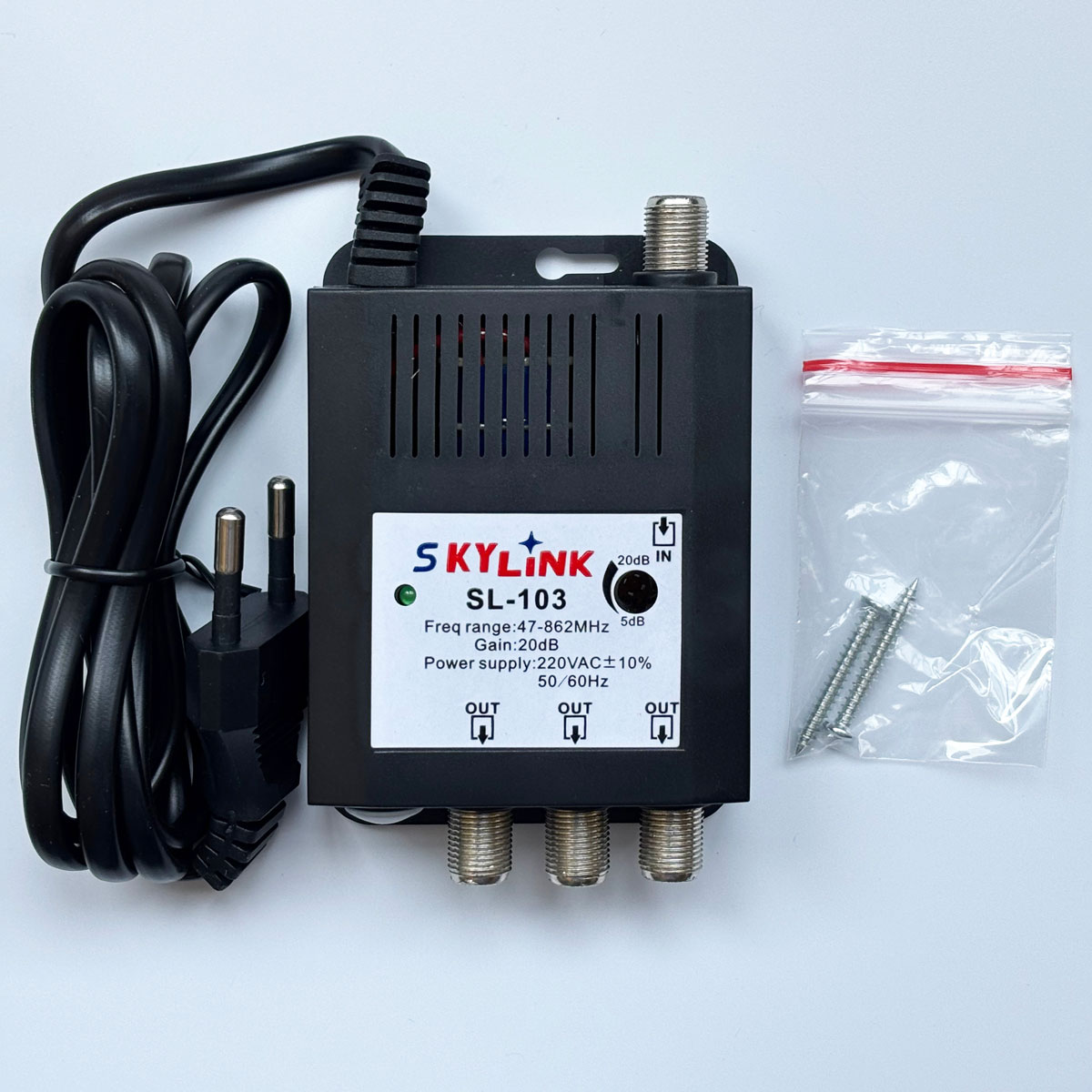

SKYLINK SL-103
3-WAY Amplifier
Frequency Range: 47-860MHz
Power :230VAC±10% 50/60Hz
All ports F-(f) connector，75Ohm
-
-
WeChat:
+86 18666876980
Technical Specifications
|
Personnel |
Signature |
date |
 Test Index |
No |
|
|
Preparation |
|
|
product model |
STA-103 |
|
|
Auditing |
|
|
Product name |
Amplifier |
|
|
Approval |
|
|
Edition |
A0 |
|
Model |
STA-103 |
|
|
Frequency Range |
MHz |
47--862 |
|
Gain |
dB |
20±2 |
|
Gain adjustment |
dB |
16 |
|
Output Level |
dBuV |
102 DIN45004B, 99 (IMD3-60dB) 86 (IMD2-60dB) 86 (CTB-60dB) 81 (CSD-60dB) 82 (XMOD-60dB) |
|
Noise Figure |
dB |
3.5 |
|
Power |
VAC |
230VAC±10% 50/60Hz |
|
VA |
3 |
|
|
Operating Temperature |
℃ |
-10~+65 |
Why choose us
3-WAY Amplifier
Frequency Range: 47-860MHz
Power :230VAC±10% 50/60Hz
All ports F-(f) connector，75Ohm
Test index chart：
Users using test results
一、Test environment description:
1.Signal source: satellite TV signal
2.RF signal: satellite signal is generated by modulator
3.Three eight-splitter products

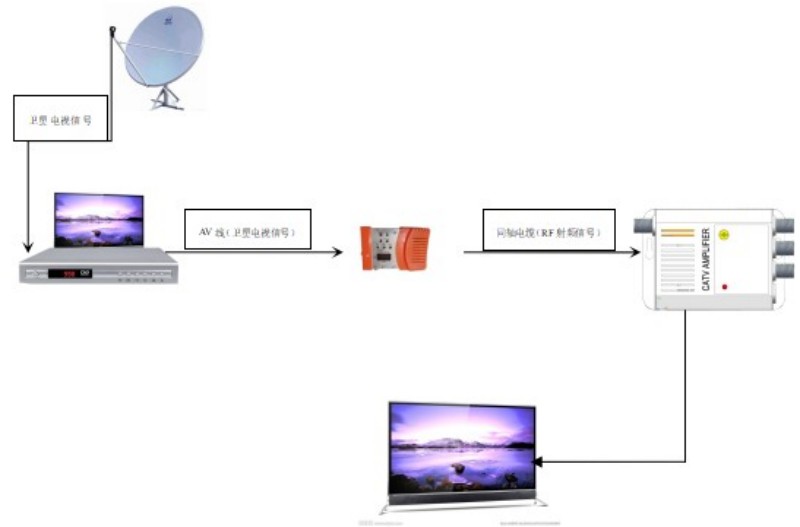

二、Use connection diagram
三、Simulated use test
1.Without connecting the amplifier, increase the attenuation of the RF signal output from the modulator to completely blur the TV reception picture (Figure 1).
2.Connect the amplifier to test the TV reception picture (Figure 2)

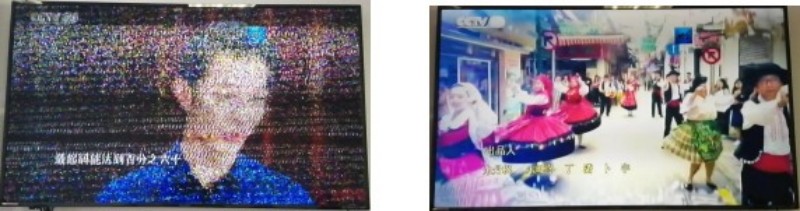

Figure 1 Figure 2
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years

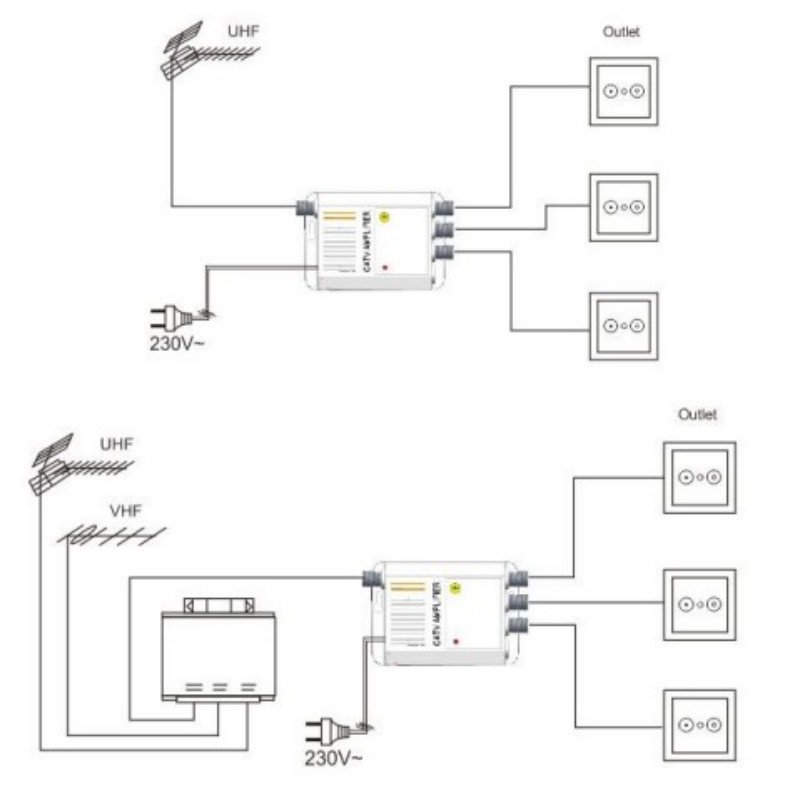

Application example
