VA-860S1 1 in 1 out Outdoor Weatherproof CATV amplifier
CATV Amplifier
VA-860S1
-
-
WeChat:
+86 18666876980
Product Specifications
|
Item |
Parameter |
|
Frequency range |
45~550/750 / 860MHz |
|
Flatness in band |
≤± 0.75dB |
|
Return loss |
≥ 16@87~550MHz ≥ 14@550~862MHz |
|
Nominal working gain |
32dB |
|
C/CSO |
60dB |
|
C/CTB |
61dB |
|
Noise figure |
9dB |
|
ATT Adjustment |
0~20dB adjustable |
|
EQ Adjustment |
0~20dB adjustable |
|
IN/Out Impedance |
75 |
|
Output Level |
≥110dBuv |
|
Signal |
1% |
|
Power Supply |
60V or 220V/AC |
|
Current |
6A/AC 60V/AC |
|
RF Connector Type |
F- connector |
|
Power Consumption |
12W (Max) |
Why choose us
CATV Amplifier
VA-860S1

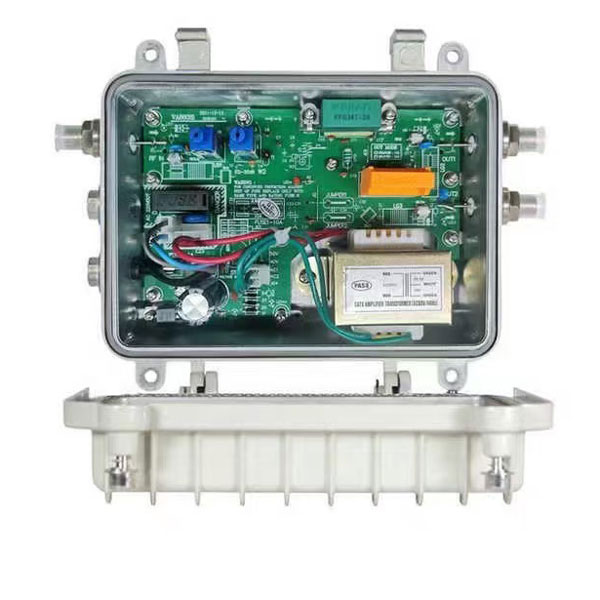

VA-860S Weatherproof Unilateralism Amplifier use for CATV system cable transmitting network, compensate cable transmitting for RF-signal loss, extend the transmitting of RF-signal or improve user’s distribution network.
Amplifier use professional module amplify design, signal level adjustment, take convenience for network return and system adjustment.
With embranchment output and two way distribution output, ensure widely practicability.
Features
(1) Frequency range: 45~550/750/862MHz.
(2) EQ range: 0~-20dB adjust continuely
(3) Gain range: 0-~20dB adjust continuely
(4) Output mode1 way coupler or 2 splitter.
(5) Power supply: AC60V or AC220V
(6) Over-current protection and lightning-proof.
1)Germany design, china factory,china price
2)RF technical experience 25 years+
3)All products was with RED/ CE and ROHS/ISO9001 certificate already
4)4 warehouses in the world.
1: Schorndorf ,Germany, around 1 week can be arrival consignee in Europe
2: warehouse/after-sales team installing in sandton,south Africa
3: Dubai warehouse in Middle-east
4:Mumbai warehouse in india
5)One-stop service,
Whatever CATV system or satellite Tv system, or FTTH optical TV system ,or DAS SYSTEM,OR all connectors accessories, it will be supported so well
6)Professional Technology/local after-sales team
7)Quality guarantee: 2 years
Application example
